VIA Nano ITX NL10000 (kein Backpanel)
344,51 €*
VIA Nano ITX NL10000 (kein Backpanel)
Mit einer Kombination aus lüfterlosem VIA Eden-N-Prozessor und dem Digital Media Chipset VIA CN400 in einem Formfaktor von gerade einmal 12cm x 12cm liefert das Nano-ITX-Mainboard der VIA EPIA N-Serie hervorragende visuelle Darstellungsqualität bei kompakten Digitalmedien-Abspielgeräten und mobiler Unterhaltungselektronik. Die Chromotion CE Video Display Engine im UniChrome Pro IGP Grafik-Core bietet uneingeschränkte Unterstützung für fortschrittliche Video-Rendering-Techniken und flimmerfreie MPEG-4/2-Digitalvideo-Wiedergabe auf allen Display-Typen von CRT- und LCD-Bildschirmen bis zu Standard-Definition-TV und -HDTV. Das VIA CN400 zeichnet sich auch durch eine stabile Shared-Memory- Architektur und Unterstützung für bis zu 1GB DDR400/333/266-Speicher mit dem FastStream64™ Memory Controller aus. Zu den weiteren Features zählt ein High-Speed Ultra V-Link Interface für eine 1GB/s-Verbindung zur VT8237 South Bridge auf dem VIA EPIA N Mainboard. Durch die integrierte PadLock™ Security Suite des VIA Eden-N-Prozessors verfügt das VIA EPIA N-Series Nano-ITX Mainboard über Sicherheitsfeatures mit hoher Leistungsfähigkeit: zwei PadLock Random Number Generators (RNGs) und AES-Verschlüsselung mit der PadLock Advanced Cryptography Engine (ACE). Zusätzlich ist der VIA Eden-N-Prozessor mit der Power-Management-Technologie PowerSaver 3.0 ausgestattet, um die Batteriebetriebsauer mobiler Geräte, die auf dem VIA EPIA N-Series Nano-ITX Mainboard betrieben warden, zu verlängern. Mit Unterstützung für Serial ATA, Parallel ATA-133, USB 2.0, Onboard LAN und in die VT8237 South Bridge integriertes V-RAID bietet die VIA EPIA N-Serie eine umfassende Bandbreite an integrierten Storage-, Multimedia- und Connectivity-Optionen. Das Board unterstützt auch VIA Vinyl Six-TRAC 6-Kanal-Audio durch 3 Audio Jacks im I/O Panel und kann mit einer zunehmenden Anzahl von LVDS- Embedded LCD Panels verbunden werden. Ein Mini-PCI Slot stellt weitere Erweiterungsoptionen bereit. VIA EPIA NL Spezifikationen Prozessor
- VIA Eden-N Processor (nanoBGA package)
- PadLock Security Suite
- PowerSaver 3.0 power management technology Chipsatz
- VIA CN400 North Bridge
- VIA VT8237R South Bridge Systemspeicher
- 1 DDR266/333/400 SODIMM socket
- Up to 1GB memory size VGA - Integrated S3 Graphics UniChrome™ Pro IGP graphics with MPEG-2 decoder/MPEG-4 acceleration Back Panel I/O No Back Panel ! Anschlüsse onboard - 1 USB pin header for 8 additional USB 2.0 ports
- 1 pin header for COM Port, SIR and LPC
- 1 CIR pin header (Switchable for PS/2 KB/MS)
- 2 Fan connectors: CPU/Sys FAN
- 1 LVDS or DVI connector (an add-on card is required)
- 1 Nano-iTX power connector
- 1 Audio pin header for Line-out, Line-in, Mic-in, CD-in and S/PDIF out
- 1 TV Out pin header for S-Video, Composite, and Component (YPbPr/Scart/D-Terminal)
- 1 pin header for 10/100 Ethernet LAN support
- 1 pin header for CRT, VGA output, SMBUS, and CAP0 Erweiterungssteckplätze
- 1 Mini PCI Onboard IDE
- 2 X UltraDMA 133/100/66 Anschluss (Secondary 2.0mm 44-pin header) Onboard SATA
- 1 x SATA Anschluss Onboard LAN
- VIA VT6103L 10/100 Base-T Ethernet PHY Onboard Audio
- VIA VIA Vinyl Six-TRAC Audio AC' 97 Codec Onboard IEEE 1394 - VIA VT6307S IEEE 1394(optional) Onboard TV-Out - VIA VT1625 HDTV Encoder r BIOS
- Award BIOS
- 2/4Mbit flash memory System-Management
- CPU voltage management
- Wake-on-LAN
- Keyboard Power-on
- Timer Power-on
- System Power Management
- AC Power state restore Form Factor
- Nano-ITX (6 layer)
- 12 cm x 12 cm
nicht verfügbar, Vorbestellung möglich
Jetway ADD-ON ADPCM2 (1x PCMCIA + 1x CF-DISK)
35,22 €*

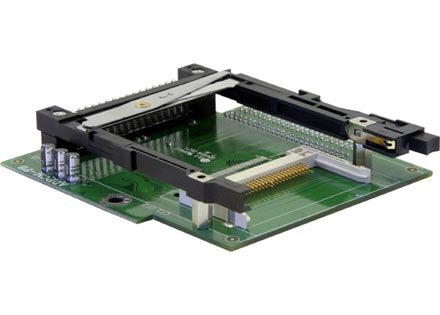

Jetway ADD-ON ADPCM2 (1x PCMCIA + 1x CF-DISK)
Adapter-Board für alle Jetway Mini-ITXBoarde mit AD-Connector :
- Erweiterung auf 1x PCMCIA + 1x CF-DISK-READER (nicht bootfähig)
nicht verfügbar, Vorbestellung möglich

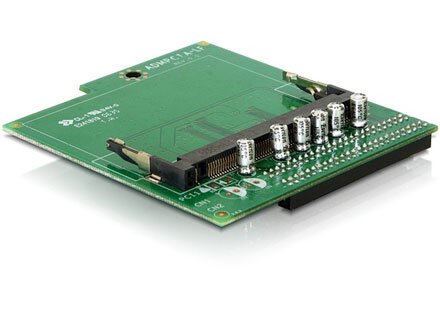

Jetway ADD-ON ADMPCI (1x Mini-PCI)
30,35 €*
Jetway ADD-ON ADMPCI (1x Mini-PCI)
Adapter-Board für alle Jetway Mini-ITXBoarde mit AD-Connector :
- Erweiterung auf 1x Mini-PCI Steckplatz
nicht verfügbar, Vorbestellung möglich
Jetway ADD-ON AD9DHDMI (1x DVI + 1x HDMI)
59,98 €*
Jetway ADD-ON AD9DHDMI (1x DVI + 1x HDMI)
Adapter-Board für das Jetway NF92-270-LF Mini-ITX Board mit AD-Connector :
- Erweiterung auf 1x DVI-D + 1x HDMI
* Onboard Chrontel CH73158 Chipset
* Dual-Display feature together with OnBoard Video output
nicht verfügbar, Vorbestellung möglich

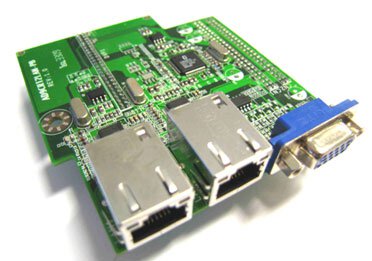

Jetway ADD-ON AD9CRT2LAN (2x LAN + 1x VGA)
50,10 €*
Jetway ADD-ON AD9CRT2LAN (2x LAN + 1x VGA)
Adapter-Board für das Jetway NF92-270-LF Mini-ITX Board mit AD-Connector :
- Erweiterung auf 2x LAN + 1x DSUB-15 VGA
* On board Dual Realtek RTL8111DL Gigabit LAN for 2nd/3rd LAN
* On board Chrontel CH7317A Chipset for 2nd VGA output
nicht verfügbar, Vorbestellung möglich
Jetway NC98-525-LF (Intel Pine Trail-D)
196,71 €*
Jetway NC98-525-LF (Intel Pine Trail-D)
- INTEL® Atom Processor D510 / D525 + NM10 Express Chipset +NVIDIA® ION2 GPU
- Support INTEL® Atom Processor D510 / D525
- Support Single Channel DDR 800 / 667
- Supports 10 / 100 / 1000 LAN
- Integrated ALC662 HD Audio CODEC with 6-CH
- Compliance with EuP standard
- Support CPU Smart FAN
- Support ACPI S3 Function
- Support Power on board
- CPU
- INTEL ® Atom Processor D510 (45nm, 1.66GHz,1024MB L2 Cache)
- INTEL ® Atom Processor D525 (45nm, 1.80GHz,1024MB L2 Cache)
- Chipset
- INTEL® Atom Processor D510 / D525 +NM10 Express Chipset
- Memory
- 2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
- Storage
- 4 * Serial ATA2 3Gb/s connectors. SATA 3 & 4 Support RAID 0, 1, JBOD
- Audio
- Realtek ALC662 6-Channel HD Audio CODEC
- Ethernet LAN
- Realtek 8111DL 10/100/1000 LAN
- USB
- Embedded 7 * USB 2.0/1.1
-
- Special Features
- Intel Atom Processor D510 / D525
- Support DC FAN
- Support CPU Smart Fan
- Rear Panel I / O
- 4 * USB 2.0/1.1 ports
- 1 * PS/2 KB/MS Connector
- 1 * Audio I/O ports ( Line-in, MIC and Line-out ) & 1 * Optical Out
- 1 * VGA port / 1 * DVI-D port / 1 * HDMI port
- 1 * 12V DC in
- 1 * Gigabit LAN
- Internal I / O
- 2 * USB 2.0 headers for 3 * USB 2.0 ports
- 3* FAN headers
- 1 * CD IN /1 * GPIO
- 1 * AUDIO header
- 1 * CIR header
- 1 * COM header
- 1 * MINI PCI-E connector
- BIOS
- AMI Flash ROM Write protect
- Functional
- Data Storage, medical Equipment, Media Center application, Networking, General
Application, Gaming Machine
- Certificate
- CE, FCC, RoHS
- Temperature
- Operating within 0~50 centigrade (Suggest to use system FAN)
- Storage within -20-85 centigrade
- Form Factor
- Mini ITX Form Factor(17cmx17cm)
Product Accessories
- COM cable
- Manual
- CD
- 2x SATA cable
- I/O shield
- SATA-Slim ODD Cable+Power
nicht verfügbar, Vorbestellung möglich
![ZOTAC Z68-ITX WiFi (LGA1155) [Z68ITX-A-E]](https://www.itx-shop.de/media/9d/9f/d6/1618491164/ZOTAC_Z68-ITX_WiFi_LGA1155_Z68ITX-A-E_-1.jpg?ts=1742460613 "ZOTAC Z68-ITX WiFi (LGA1155) [Z68ITX-A-E]")

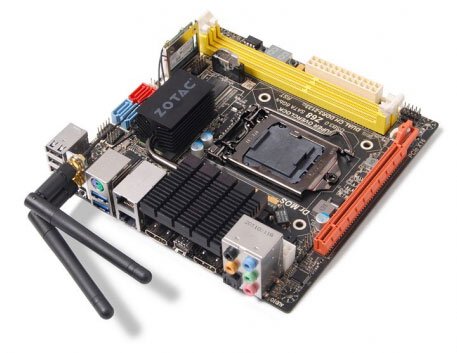

ZOTAC Z68-ITX WiFi (LGA1155) [Z68ITX-A-E]
158,98 €*
ZOTAC Z68-ITX WiFi (LGA1155) [Z68ITX-A-E]
Kreieren Sie ein perfektes SmallFormFactor PC-System für alle Ihre IT-Anforderungen mit dem ZOTAC® Z68-ITX WiFi Mainboard im Mini-ITX Design. Das ZOTAC® Z68-ITX WiFi ist ausgestattet mit dem Intel® Z68 Express Chipsatz sowie einen LGA1155 Sockel für die neuste Intel® Core™ i3, Core™ i5 sowie Core™ i7 Sandy-Bridge Prozessor-Generation und ermöglicht dabei den Anwendern, alle Vorteile der 2. Intel® Core™ Prozessor Generation einschließlich integrierter Intel® HD 2000/3000 Grafik, Overclocking und der Intel® Quick-Sync-Video-Technologie für blitzschnelles Video-Transcoding nutzen zu können. Dazu verfügt das Z68-ITX neben zwei HDMI auch über einen Mini-DisplayPort. Anspruchsvolle Gamer können dank des im Z68-ITX WiFi vorhandenen PCI-Express x16 Slots eine diskrete Grafikkarte installieren, um so die Grafikleistung abermals zu steigern. Product Name Product Name ZOTAC Z68-ITX WiFi Model Model Z68ITX-A-E Chipset Manufacturer Intel® Chipset Z68 Express GPU Intel® HD Graphics 2000/3000 ready CPU Compatibility Name 2nd Generation Intel® Core™ series
2000 Series Intel® Core i3
i5 & i7 ready Socket LGA1155 Bus N/A Memory Memory Type DDR3 Memory Speed 2133 MHz Slots 2 x 240-pin DIMM Capacity Up to 16GB CPU and Memory Compatibility List CPU and Memory Compatibility List see above 3D API DirectX® DirectX® 10.1 OpenGL® OpenGL® 2.1 Expansion Slots 1 x PCI Express x16
1 x Combo mini-PCI Express / mSATA (occupied by WiFi card) Networking Ethernet 2 x 10/100/1000Mbps WiFi 802.11n Audio Analog N/A Digital N/A Ports DVI N/A HDMI 2 (HDMI 1.4a) DisplayPort 1 (mini-DP) SATA 2 (SATA 6.0 Gb/s)
2 (SATA 3.0 Gb/s) eSATA N/A PATA N/A PS/2 1 (keyboard/mouse) Serial Port N/A USB Ports 4 USB 3.0 (2 on back panel / 2 on pin header)
8 USB 2.0 (4 on back panel / 4 on pin header) FireWire Ports N/A Cooler Cooler Passive (without fan) Form Factor Form Factor mini-ITX OS Compatibility Windows Windows® Vista / 7 Premium ready General SLI Supported No Maximum Resolution 2560 x 1600 Other Wake-On Support N/A Overclocking features N/A Packaging Package Contents 4 x SATA cables
1 x I/O back plate
2 x WiFi antennas
1 x 8-pin power extension cable
1 x USB 3.0 header (full-size bracket)
1 x USB 3.0 low-profile bracket
1 x Vertical mini-PCI Express full height bracket (for mSATA SSDs)
1 x mini-DisplayPort to DisplayPort adapter Graphics Output 2 HDMI / 1 DP
nicht verfügbar, Vorbestellung möglich

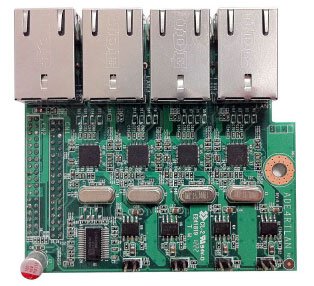

Jetway ADD-ON AD4RTLANG (4x GigaLAN, Realtek) [Gen
69,85 €*
Jetway ADD-ON AD4RTLANG (4x GigaLAN, Realtek) [Gen2]
Easily add four additional Realtek gigabit LAN ports. Compatible with selected Jetway motherboards that support the new Jetway Daughter Board Gen2 interface. 1. (4) four Realtek RTL8111E-VL-CG PCI Express gigabit ethernet controllers
2. (4) four activity LED headers
3. Full Duplex flow control (IEEE 802.3x)
4. Wake-on-LAN and remote wake-up support
5. Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
6. Proprietary Jetway Daughter Board Gen2 interface (PCI Express bus)
nicht verfügbar, Vorbestellung möglich

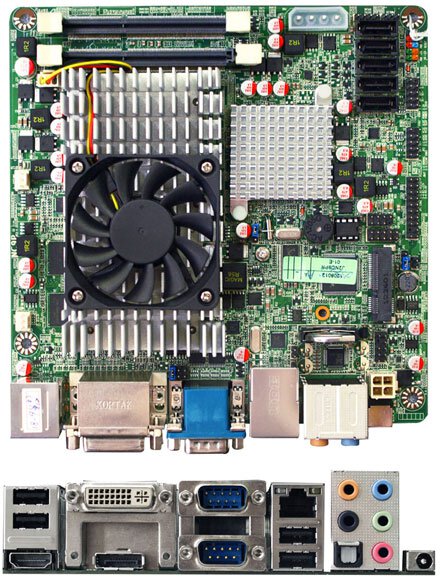

Jetway NC9P-2550 (Intel Cedar Trail-D)
247,16 €*
Jetway NC9P-2550 (Intel Cedar Trail-D)
- INTEL® Cedar Trail-D Processor D2550 + ICH10R Chipset + NVIDIA® 610M GPU
- Support 2 * DDR3 1066MHz Single CH up to 8GB
- Support DirectX 11 Graphics up to 850MHz
- 5 ports Serial ATAII (3Gb/s) with RAID 0, 1, 5,10 supported
- Realtek ALC887 8-CH HD Audio CODEC
- Support HDMI, DP & DVI-I (Dual Link) Display output
- Supports 1 * Realtek RT8111F Gigabit LAN
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
- Mini-ITX Form Factor (170mm x 170mm)
- CPU
- INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
- Chipset
- INTEL® ICH10R Express chipset
- GPU
- Nvidia 610M
- Memory
- 2 * DDR3 1066/800MHz Single CH SO-DIMM up to 8GB
- Expansion Slots
- 1 * MINI PCI-E
- Storage
- 5 * Serial ATAII 3Gb/s with RAID 0,1, 5, 10 supported
- 1 * mSATA (Selectable with Mini PCI-E)
- Audio
- Realtek ALC887 8-CH HD Audio CODEC
- Ethernet LAN
- 1 * RTL8111F PCI-E Gigabit LAN
- USB
- Embedded 8 * USB 2.0/1.1
- Special Features
- Support ACPI S3
- Support CPU Smart FAN
- Support Watch Dog
- Rear Panel I / O
- 4 * USB 2.0/1.1 ports
- 1 * RJ-45 port
- 2 * COM ports
- 1 * DP port
- 1 * HDMI port
- 1 * DVI-I (Dual Link) port
- 1 * Audio I/O port
- 1 * +12V DC-in jack
- Internal I / O
- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
- CPU /NB / Chassis Fan connectors;
- 1 * GPIO header
- 1 * TPM header
- 1 * CIR
- 1 * Chassis Intrusion header
- BIOS
- AMI 16MB UEFI DIP Flash ROM
- Form Factor
- Mini ITX Form Factor(170mm x 170mm)
- Functional
- POS, Digital Signage, Gaming Machine, Kiosk
- Certificate
- CE, FCC, RoHS
- Temperature
- Operating within 0~60 centigrade
- Storage within -20-85 centigrade
nicht verfügbar, Vorbestellung möglich

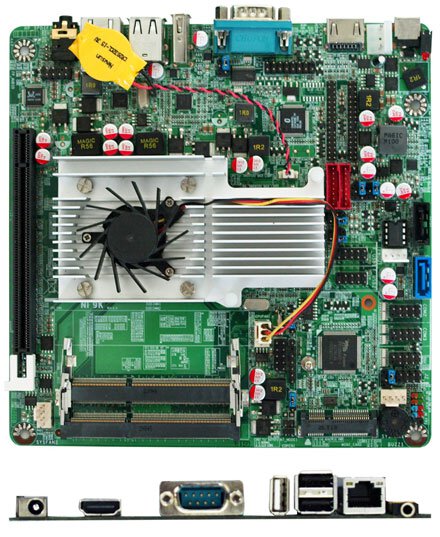

Jetway NF9KC-1047 (Intel HM65)
247,16 €*
Jetway NF9KC Mini-ITX Motherboard
Specification:
- Processor: Intel® Celeron 1047UE Dual Core Mobile Processor 1.4 GHz @ 17W (FCBGA1023)
- Chipset: Intel HM65 (AKA Cougar Point)
- Memory: 2 x DDR3-1600/1333 SODIMM Slot Dual Channel (up to 16 GB)
- Graphics: Intel HD2500 Graphics
- Audio: Realtek ALC662 5.1 Channel HD Audio
- LAN: 1 x INTEL i211AT PCIE Gigabit Ethernet
- Storage:1 x SATA3 6Gb/s Connector 1 x SATA2 3Gb/s Connectors 1 x mSATA (Share with Mini PCI-E slot)
- Super IO: FINTEK F81866A
Back Panel Connectors:
1 9V~24V DC-In Jack
1 HDMI
1 RS232/422/485 COM port
3 USB 2.0
1 RJ45 LAN (10/100/1000)
1 3.5mm Line-out Audio
Onboard I/O Connectors:
1 PCI-E x1 Slot
1 mini PCI-E Slot (share with mSATA)
1 SATA3 6Gb/s Connectors
1 SATA2 3Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
3 Serial Headers (2 * RS232, 1 * RS232/422/485)
2 24-bits Dual Channel LVDS connector/Inverter
1 2-pin NIC ACT LED header
1 9-pin Audio header
1 VGA header
1 GPIO header
1 PS2 Keyboard/Mouse header
1 Chassis Intrusion header
1 Front Panel header
3 Fan headers
1 4-pin SATA power header
1 2-pin interneal DC-in power connector
Market Segments Supported:
- Digital Security & Surveillance
- Digital Signage
- Gaming
- Industrial Automation/Control
- Medical
- Retail (POS/Kiosk/ATM)
- Networking/Storage Server/Mail Server/Print Server
- Thin Client
- HTPC
nicht verfügbar, Vorbestellung möglich

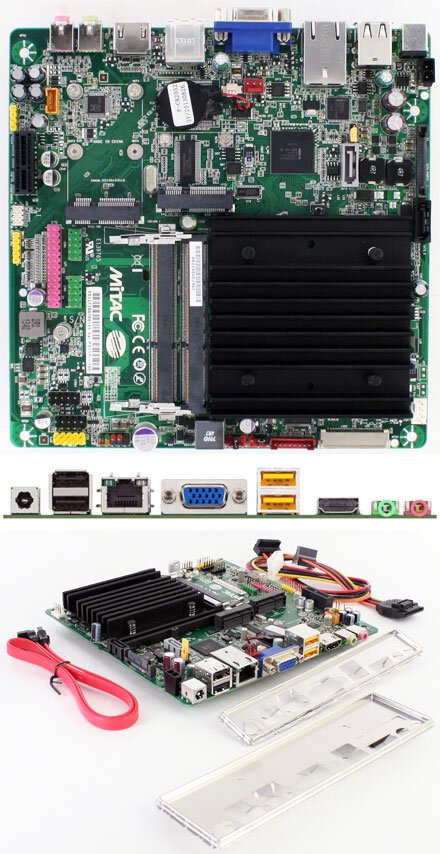

Mitac PD11TI (Intel DN2800MT-E) Half-Height (Intel
178,86 €*
Mitac PD11TI (Intel DN2800MT-E) Half-Height (Intel)
-Support Intel Atom N2800 dual core processor
- Intel Graphic Media Accelerator 3600
-Single channel DDR3 with two connectors for MAX. 4GB memory
- Features high speed Gigabit Ethernet connection
- Features 2 SATA 3Gb/s
- Eight Hi-Speed USB2.0 ports support
- 8 V to 19 V wide-range voltage input via back-panel DC jack or internal power connector
- One PCIe connector for the future Add-in card
- Two PCI Express Mini Card connector for expansion card like Wifi
- Dual independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS connectivity
Specification
Form Factor: Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters[6.7 inches] x 170.18 millimeters [6.7 inches])
Processor: Fanlessly-cooled, soldered-down dual-core Atom™ Processor N2800 with integrated graphics and memory controller
Chipset: NM10 Express Chipset
Memory: Two 204-pin Double Data Rate 3 (DDR3) Small Outline Dual Inline Memory Module (SO-DIMM) socketsSupport for DDR3 800 MHz and DDR3 1066 MHz SO-DIMMs Support for up to 4 GB of system memory on a single SO-DIMM (or two 2 GB SO-DIMMs)
Graphics: Integrated graphics, Digital displays (HD-Out).Analog displays (VGA),Internal flat panel displays,LVDS,Embedded DisplayPort* eDP*, External graphics support via a PCI Express 1.0a x1 graphics add-in card connector
Audio: 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC888S audio codec supporting,Analog stereo line-out (back panel jack), In-chassis stereo speakers support (3 W/3 Ω via an internal header), S/PDIF digital audio output (internal header),DMIC digital microphone input (internal header),Analog line-in (back panel jack)lFront panel MiTAC HD Audio/AC’97 headphones/mic support (internal header)l 8-channel (7.1) HD Audio via the HD-Out interface
Expansion Capability: One PCI Express 1.0a x1 add-in card connector,One PCI Express Full-/Half-Mini Card slot, One PCI Express Half-Mini Card slot
Peripheral Interfaces
- Eight exposed USB 2.0 ports including:
- Four front panel ports (via two internal headers; one header
- supports an Z-U130 USB Solid-State Drive (or compatible device))
- Two ports are implemented with stacked back panel connectors (black)
- Two high-current/fast-charging ports implemented through
- stacked back panel connectors(yellow)
- Two SATA ports:
- One internal SATA 3.0 Gb/s port (Port 0, black)
- One internal SATA 3.0 Gb/s port (multiplexed with an mSATA port, routed to the PCI Express Full-/Half-Mini Card slot) (Port 1, gray)
Legacy I/O
- Legacy I/O Controller (Nuvoton* W83677DHG) that provides
- Two serial ports via onboard header
- One parallel port via an onboard header
- Hardware management support
LAN Support
- 82579L Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
nicht verfügbar, Vorbestellung möglich
Intel NUC D54250WYB Mainboard (Next Unit of Comput
365,33 €*
Intel NUC D54250WYB Mainboard (Next Unit of Computing, Intel Core i5 4250-U)
Sleek, shiny, and with a smaller footprint than a wireless modem, the Intel® NUC with the 4th generation Intel® Core™ i5 processor is at home in your living room, your office, or your media center. The D54250WYB SKU of Intel NUC is equipped with Intel® Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times. The Intel NUC comes complete with Intel® HD Graphics 5000 to ensure a brilliant HD experience, Intel® Quick Sync Video for fast video encoding, and DisplayPort 1.2* for driving 4k displays. Couple this with a stereo/mic jack along with four USB 3.0 ports and an infrared sensor for your remote control, and you can create a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for discrete hardware. The Intel NUC: as small as a game controller, as powerful as a jackhammer. Features :
- Intel QM87
- CPU: Intel Core i5-4250U, 2x 2.60GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3 SO-DIMM
- Extension: 1x PCIe Mini Card (shared, full-size), 1x PCIe Mini Card (half-size)
- External I/O: 1x Mini HDMI 1.4a, 1x Mini DisplayPort 1.2, 4x USB 3.0, 1x Gb LAN (Intel), 3x Audio
- Internal I/O: 2x USB 2.0, 1x mSATA 6Gb/s (shared)
- Graphics: Intel HD Graphics 5000
nicht verfügbar, Vorbestellung möglich
Intel NUC D34010WYB Mainboard (Next Unit of Comput
312,02 €*
Intel NUC D34010WYB Mainboard (Next Unit of Computing, Intel Core i3 4010-U)
Built with a 4th generation Intel® Core™ i3 processor, integrated Intel® HD Graphics 4400, and 8-channel audio, the Intel® NUC gives you the power to create a media center PC that lets you fully experience Hulu*, iTunes*, Netflix*, Pandora*, and other online entertainment content—and enjoy it all in crisp HD. The D34010WYK SKU of Intel NUC is equipped with Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times. This new generation Intel NUC packs more features into an even slimmer form factor. What’s more, the sleek, small Intel NUC has a stereo/microphone jack and USB 3.0 for easy home theater connections and gaming requirements. Or, use it as a home office PC. The Intel NUC is small enough to unclutter your office, yet powerful enough to run the most demanding applications. The Intel NUC: as small as a desktop speaker, as powerful as a sonic boom. Features :
- Intel QM87
- CPU: Intel Core i3-4010U, 2x 1.70GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3 SO-DIMM
- Extension: 1x PCIe Mini Card (shared, full-size), 1x PCIe Mini Card (half-size)
- External I/O: 1x Mini HDMI 1.4a, 1x Mini DisplayPort 1.2, 4x USB 3.0, 1x Gb LAN (Intel), 3x Audio
- Internal I/O: 2x USB 2.0, 1x mSATA 6Gb/s (shared)
- Graphics: Intel HD Graphics 4400
nicht verfügbar, Vorbestellung möglich
Jetway JNC9VL-H81 (Intel H81)
217,41 €*
Jetway - Mainboard Jetway JNC9VL-H81 Mini-ITX
- 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor
- Commercial Class Industrial Motherboard
- Intel HD 4000/5000 Graphics, DirectX 11.1 with Thin Mini ITX Form Factor
- Supports up to 2 Displays, DVI, HDMI, 24bit LVDS
- Onboard +19V DC Power or Internal 2-pin +19V Connector
- ECO-design for EuP/ErP
Specification
Processor: 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor < 65W Socket LGA 1150 (Formerly Haswell)
Chipset: Intel H81 (AKA Lynx Point)
Memory: 2 x 204-pin SODIMM DDR3-1600 Dual Channel (up to 16 GB)
Graphics: Requires Intel Core processor with Intel HD Graphics
Audio: Realtek ALC662 5.1 Channel Audio with 3W Amplifier
LAN: 1 x Intel i217LM PHY Gigabit LAN
Storage: 1 x SATA3 6Gb/s Ports, 1 x SATA2 3Gb/s Ports, 1 x mSATA slot
Super IO: FINTEK F71808A
Back Panel Connectors
1 19V DC-in Jack
2 USB 3.0
1 DVI-I (up to 1920 x 1200)
1 HDMI (up to 1920 x 1200)
1 RJ45 LAN (10/100/1000)
2 USB 2.0
2 3.5mm Audio
Onboard I/O Connectors
1 PCI-E x1 Slot
1 mSATA slot (Full-size)
1 mini-PCI Express slot (Half-size)
1 SATA3 6Gb/s Connectors
1 SATA2 3Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
1 24-bits Dual Channel LVDS connector/Inverter
1 9-pin Front Panel Audio header
1 4-pin Left & Right Speaker connector
1 PS2 Keyboard/Mouse header
1 CIR header
1 DMIC header
1 Chassis Intrusion header
1 2-pin LAN LED header
1 2-pin WiFi LED header
1 2-pin Bluetooth LED header
1 FPD Brightness connector
1 Front Panel header
2 Fan headers
1 2-pin Internal Power connector (Molex 5566-2)
1 SATA Power connector
Market Segments Supported
- Digital Security & Surveillance
- Digital Signage
- Gaming
- Industrial Automation/Control
- Medical
- Retail (POS/Kiosk/ATM)
- Networking/Storage Server/Mail Server/Print Server
-Thin Client
- HTPC
nicht verfügbar, Vorbestellung möglich
Mitac PH10LU Micro-ATX (Intel Q87, LGA1150)
88,77 €*
Mitac PH10LU Micro-ATX (Intel Q87, LGA1150)
- Support 4th generation (Haswell) 22nm Intel® Core™ i7, i5, i3 processors
- Single channel DDR3 with four connectors for MAX. 32GB memory
- LVDS for embedded system (Optional)
- Features Dual Com Ports
- Integrated Six-channel High Definition audio
- Features dual high speed Gigabit Ethernet connection
- Support up to four ports USB3.0
- Eight Hi-Speed USB2.0 ports support
- One PCI connector for the future Add-in card (Optional)
- One PCI Express Mini Card connector for expansion
Specification
- Form Factor: Micro-ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6 inches])
- Processor: 4rd generation Intel® Core processor family with up to 95 W TDP in an LGA1150 socket
- Main Memory: Support for DDR3 1066/1333/1600 MHz U-DIMMs Support for up to 32 GB of system memory 240-pin DDR3 U-DIMM
- Chipset: Intel® Q87 Platform Controller Hub (PCH)
- Integrated Graphics: Intel® Graphics Media Accelerator 4600 (Intel® GMA 4600) Video Output: DVI-I +DP
- Audio: RealTek* ALC662/888 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio.Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio
- Legacy I/O: Legacy I/O Controller (Nuvoton* NCT6104D) that provides:Hardware management support
- Peripheral Interfaces: SUSB 3.0 back panel connectors (blue) 2, USB 2.0 back panel connectors (black) 4. PUSB 3.0 front panel ports 2(headers) PUSB 2.0 front panel ports4 (Headers) Serial ATA (SATA) 6.0 Gb/s 6
- LAN Support: Intel® I217 Gigabit (10/100/1000 Mb/s) LAN Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
nicht verfügbar, Vorbestellung möglich
Intel NUC DE3815TYBE Mainboard (Next Unit of Compu
30,94 €*
Intel NUC DE3815TYBE Mainboard (Next Unit of Computing, Intel Atom E3815)
· CPU: Intel Atom E3815, 1.46GHz, 512KB Cache, 5W TDP
· Speicherslots: 1x DDR3L SO-DIMM 1.35V, 1066/1333/1600, max. 8GB
· Erweiterungsslots: 1x Mini-PCIe
· Anschlüsse extern: 1x HDMI 1.4a, 1x USB 3.0, 2x USB 2.0, 1x Gb LAN (Intel), 1x Klinke
· Anschlüsse intern: 1x eDP 1.3, 1x VGA, 3x USB 2.0, 1x SATA 6Gb/s, 1x seriell
· Stromanschlüsse: 1x DC-Stecker (12-19V) extern, 1x DC-Header (12-24V) intern
· Grafik: Intel HD Graphics (IGP)
· Audio: 7.1 Surround via HDMI. Additional external headphone/microphone jack
· Supported OS : Windows 7/8, Linux
· Storage: 4GB eMMC integrated, 1x SATA port
· Besonderheiten: UCFF (4"x4"), All solid capacitors, passiv gekühlt
nicht verfügbar, Vorbestellung möglich
Jetway JNF9M-2930 (Intel BayTrail)
286,79 €*
Jetway JNF9M-2930 (Intel BayTrail)
Specification:
- Processor: Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP Intel® Atom E3827 SoC, 1.75GHz, Dual-Core, 8W TDP, with AES-NI support
- Memory 2 x 204-pin SODIMM DDR3L-1333 Single Channel (up to 8 GB) Graphics Intel HD Graphics, 313MHz - 854MHz for N2930 Intel HD Graphics, 542MHz - 792MHz for E3827
- Audio: Realtek ALC662 2.1 Channel HD Audio with 3W Speaker Amplifier
- LAN: 1 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
- Storage: 2 x SATA2 3Gb/s Connectors 1 x Full-size mSATA slot
- Super IO: FINTEK F81866A
Back Panel Connectors:
1 +9V ~ +36V DC-in jack
1 USB 3.0
1 DVI-I
1 COM port (RS232/422/485)
1 RJ45 LAN (10/100/1000)
3 USB 2.0
1 3.5mm Audio Jacks (Line Out)
Onboard I/O Connectors:
1 PCI Express x1 Slot
1 Full size mSATA Slot (shares with one SATA)
1 Half size mini PCI-E Slot
2 SATA2 3Gb/s Connectors
1 USB 3.0 Pin Headers for up to 2 additional USB 3.0 Ports
1 USB 2.0 Pin Headers for up to 2 additional USB 2.0 Ports
3 Serial Port Headers (RS232, +5V/+12V)
1 24-bits Dual Channel LVDS connector/Inverter
1 GPIO header
1 Chassis Intrusion header
1 AT/ATX Mode jumper
1 PS/2 Mouse/Keyboard header
1 Parallel header
1 9-pin Audio header
1 2-pin LAN LED header
1 2-pin SPDIF header
1 4-pin SMBUS header
1 Front Panel header
3 Fan headers
1 4-pin Power Output (Male)
1 2-pin +9V ~ +36V Alternate Power connector (Molex 5566-2)
Market Segments Supported:
- Digital Signage
- Panel PC
- Industrial Automation/Control
- All-In-One
- Retail (POS/Kiosk/ATM)
- Casino Gaming
- Thin Client
nicht verfügbar, Vorbestellung möglich
Mitac PD11BI (Intel D2500CC2) (Intel Bay Trail Cel
168,86 €*
Mitac PD11BI (Intel D2500CC2) (Intel Bay Trail Celeron J1900 4x2.42Ghz CPU, 2x LAN, 4x RS232) [ LÜFTERLOS ]
Dieses Board wird von MITAC hergestellt, dem Auftragsproduzenten von Intel für Intel D2500CC. Das Mainboard basiert auf Intel D2500CC, ist aber mit der moderneren BayTrail Plattform ausgestattet. - Nachfolger des Intel D2500CC-E Mainboards
- Quad-core Intel Celeron J1900
- DVI-I for full dual-independent display support
- 4 serial ports & headers for multiple peripherals
- Boards are suitable for other devices; ATM, Kiosk, POS, etc. Name Mitac PD11BI (Intel D2500CC2) Form Factor Mini-ITX Mainboard CPU Intel® Celeron™ J1900 (4x 2.42GHz)
2MB Cache, VT-x/Intel64-compatible Graphics VGA + DVI-I + LVDS Memory 2x SO-DDR3L [Low Voltage, 1.35V] 1066/1333, 8GB max, Dual channel Power 24 Pin ATX LAN 2x Realtek RTL8111G-CG 10/100/1000 MBit Connectors (rear) - 2x USB 2.0
- 2x USB 3.0
- 2x LAN RJ-45
- 3x Audio
- 2x PS/2
- 2x RS232
- 1x DVI-I
- 1x VGA Audio 6+2 Channel HD Audio Connectors (internal) - 2x SATA-II (3GB/s)
- 2x USB 2.0
- 1x Intel Z-U130 USB Header
- 1x PCIe x1
- 1x Mini-PCIe
- 2x RS232
- 1x Parallel LPT
- Front Audio
- LVDS (Dual 24bit) Included - Mitac PD11BI (D2500CC2) Mainboard (with 4x 2.42Ghz Bay-Trail CPU)
- I/O ATX rear plate
- 1x SATA cable
nicht verfügbar, Vorbestellung möglich
Jetway NF9U Mini-ITX Motherboard
276,91 €*
Jetway NF9U Mini-ITX Motherboard
- Intel Celeron N2930 SoC Processor
- Embedded Class Planned Lifecycle through Q1.2019
- Supports up to 2 Displays, HDMI, VGA, 24bit LVDS
- RJ11 Jack with +12V/+24V Power for Cash Drawers
- 6 x COM Ports with +5V/+12V
- 9V ~ 24V DC-in or Alternate Internal 2-pin Power Connector
- ECO-design for EuP/ErP
Specification
- Processor: Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP
- Memory: 1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)
- Graphics: Intel HD Graphics, 313MHz - 854MHz
- Audio: Realtek ALC662 2.1 Channel HD Audio with 3W Amplifier
- LAN: 2 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
- Storage: 2 x SATA2 3Gb/s Connectors, 1 x mSATA (Full size)
- Super IO: FINTEK F81866A
Back Panel Connectors
1 9V ~ 24V DC-In jack
1 USB 3.0
3 USB 2.0
1 PS/2 Keyboard/Mouse
1 RJ-11 port (+12V/+24V)
1 HDMI
1 VGA
1 Parallel port
1 COM port (RS232/422/485, +5V/+12V)
2 RJ45 LAN (10/100/1000)
2 3.5mm Audio Jacks (Line Out, Mic In)
Onboard I/O Connectors
1 PCI Express x1 Slot
1 Full size mSATA Slot
1 Half size mini PCI-E Slot
2 SATA2 3Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
5 Serial Port Headers (RS232, +5V/+12V)
1 24-bits Dual Channel LVDS connector/Inverter
1 AT/ATX power switch mode select jumper
1 Chassis Intrusion header
1 SMBUS header
1 8-bit GPIO header
1 9-pin Audio header
1 Front Panel header
3 Fan headers
1 2-pin +9 ~+24V Alternate Power Connector
Market Segments Supported
- Digital Security & Surveillance
- Digital Signage
- Gaming
- Industrial Automation/Control
- Medical
- Retail (POS/Kiosk/ATM)
- Networking/Storage Server/Mail Server/Print Server
- Thin Client
- HTPC
nicht verfügbar, Vorbestellung möglich
Jetway NF9QU-Q87 (Intel Bay Trail-M)
286,79 €*
Jetway NF9QU-Q87 Mini-ITX Motherboard
- Processor: 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor < 65W
- Socket: LGA 1150 (Formerly Haswell)
- Chipset: Intel Q87 (AKA Lynx Point)
- Memory: 2 x 204-pin SODIMM DDR3-1600 Dual Channel (up to 16 GB)
- Graphics:Requires Intel Core processor with Intel HD Graphics
- Audio: Realtek ALC662 5.1 Channel Audio
- LAN:1 x Intel i217LM PHY Gigabit LAN (iAMT 9.0)
- 1 x Intel i211AT PCI-E Gigabit LAN
- Storage: 4 x SATA3 6Gb/s Ports with RAID 0, 1, 5, 10 , JBOD
- 1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)
- Super IO: FINTEK F81866A
Back Panel Connectors
1 +9 ~ +24V DC-in jack (1-pin 2.5mm ID, 5.5mm OD)
1 HDMI (up to 1920 x 1080)
1 DVI-D (up to 1920 x 1080)
1 VGA
2 Serial ports (1 * RS232/422/485 jumperless com port)
4 USB 3.0
2 RJ45 LAN (10/100/1000)
2 3.5mm Audio
Onboard I/O Connectors
1 PCI-E x4 Slot
1 Shared mSATA/mini-PCI Express Combo slot (Full-size)
1 Mini-PCI Express slot (Half-size)
4 SATA3 6Gb/s Connectors
1 USB Pin Headers for up to 2 additional USB 3.0 Ports
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
1 Nuvoton TPM IC onboard
1 9-pin Audio header
2 Serial Headers (2 * RS232)
1 GPIO header
1 Chassis Intrusion header
1 PS2 Keyboard/Mouse header
2 LAN LED header
1 SPDIFOUT header
1 SMBUS header
1 AT/ATX mode select jumper
1 Front Panel header
3 Fan headers
1 4-pin Molex Power Output (Male)
1 4-pin +9 ~ +24V ATX Power Connector for alternate internal power supply
Market Segments Supported
-Digital Security & Surveillance
- Digital Signage
- Gaming
- Industrial Automation/Control
- Medical
- Retail (POS/Kiosk/ATM)
- Networking/Storage Server/Mail Server/Print Server
- Thin Client
- HTPC
nicht verfügbar, Vorbestellung möglich
Jetway NF9V-2930 (Intel Bay Trail-M)
217,41 €*
Jetway NF9V-2930 (Intel Bay Trail-M)
- Intel Celeron N2930 SoC Processor
- Embedded Class Planned Lifecycle through Q1.2019
- Built-in PenMount Touchscreen IC
- RJ11 Jack with +12V/+24V Power for Cash Drawers
- 4 * External RJ45 Serial Ports & 2 * Internal Serial Header
- 12V DC-in or Alternate Internal 2-pin Power Connector
- ECO-design for EuP/ErP
Specification:
- Processor: Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP
- Memory: 1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)
- Graphics: Intel HD Graphics, 313MHz - 854MHz
- Audio: Realtek ALC662 2.1 Channel HD Audio with 3W Amplifier
- LAN: 1 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
- Storage: 1 x SATA2 3Gb/s Connector, 1 x mSATA (Full size)
- Super IO: FINTEK F81866A
Back Panel Connectors:
1 12V DC-In jack
1 PS/2 Keyboard/Mouse
1 USB 3.0
3 USB 2.0
1 RJ45 LAN (10/100/1000)
1 RJ-11 port (+12V/+24V)
4 RJ45 Serial Ports (cables not included)
Onboard I/O Connectors:
1 PCI Express x1 Slot
1 Full size mSATA Slot
1 Full size mini PCI-E Slot
1 SATA2 3Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
2 Serial Port Headers (1 * RS232, 1 * RS232/422/485)
1 24-bits Dual Channel LVDS connector/Inverter
1 PenMount C8051F321 Touch IC 5-wire Resistive
1 AT/ATX power switch mode select jumper
1 Chassis Intrusion Header
1 VGA Header
1 Parallel Header
1 SMBUS(I2C) Header
1 8-bit GPIO Header
1 9-pin Audio Header
1 2-pin LAN LED Header
1 Front Panel Header
3 Speaker Header, Mic Header, Line-out Header
3 Fan Headers
1 2-pin MON_PWR Out Connector
1 2-pin +12V Alternate Power Connector (Molex 5566-2)
Market Segments Supported:
- Digital Security & Surveillance
- All-in-One (AIO)
- Panel PC
- Industrial Automation/Control
- Retail (POS/Kiosk/ATM)
- Thin Client
nicht verfügbar, Vorbestellung möglich
Jetway NF9HB-2930 (Intel Bay Trail-M)
295,72 €*
Jetway NF9HB-2930 (Intel Bay Trail-M)
- Intel Celeron N2930 SoC Processor
- Embedded Class Planned Lifecycle through Q2.2019
- Quad Gigabit Intel LAN & 1 Pair LAN Bypass
- Ultra Slim Design with 20mm z-height and Low Profile IO Shield
- 12V DC-in or Alternate Internal 2-pin Power Connector
- ECO-design for EuP/ErP
Specification:
Jetway NF9HB Mini-ITX Motherboard
- Processor: Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP
- Memory: 2 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)
- Graphics: Intel HD Graphics, 313MHz - 854MHz
- Audio: NA
- LAN: 4 x Intel i211AT Gigabit Ethernet, 1-pair with LAN Bypass function
- Storage: 2 x SATA2 3Gb/s Connector, 1 x mSATA (Full size)
- Super IO: FINTEK F81768D-I
Back Panel Connectors:
1 12V DC-In jack
1 Serial port (RS232/422/485)
1 USB 3.0
1 USB 2.0
4 RJ45 LAN (10/100/1000)
Onboard I/O Connectors:
2 PCI Express x1 Slot
1 Full size mSATA Slot
1 Full size mini PCI-E Slot
2 SATA2 3Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
1 Serial Port Header
1 SIM Card Holder
1 AT/ATX power switch mode select jumper
1 Chassis Intrusion Header
1 VGA Header
1 5-pin SMBUS(I2C) Header
1 8-bit GPIO Header
4 2-pin LAN LED Header
1 9-pin Front Panel Header
1 7-pin PS2 Keyboard Mouse Header
3 4-pin Fan Headers
1 2-pin +12V Alternate Power Connector (Molex 5566-2)
Power Supply for NF9HB:
External Power Supply – the board can be powered with a 12V external power supply though a DC connector on the back panel. The rear 12V DC jack accepts plugs with an inner diameter (ID) of 2.5 mm and an outer diameter (OD) of 5.5 mm, where the inner contact is 12V and the shell is GND.
Internal Power Supply – the board can alternatively be powered via the internal 12V DC 1 x 2 power connector, where pin 1 is GND and pin 2 is +12 (±10%) VDC. The internal 1 x 2 power connector is a Molex 5566-2 header which accepts a Molex 5557-02R connector from the power supply.
Caution: There is no isolation circuitry between the external 12V DC jack and the internal 1 x 2 power connector. It is the system integrator's responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external 12V DC jack is covered if the internal 1 x 2 power connector is to be used.
Market Segments Supported:
- Networking/Network Appliances
- Industrial Automation/Control
- Thin Client
Environment:
- Operating Temperature : 0 ~ 60°C
- Storage Temperature : -20 ~ 85°C
nicht verfügbar, Vorbestellung möglich
Mitac PD14RI-N3050 (Intel D2500HN2) (Intel Braswel
119,36 €*
Mitac PD14RI-N3050 (Intel D2500HN2) (Intel Braswell Celeron N3050 2x 2.16Ghz CPU) [ LÜFTERLOS ]
Dieses Board wird von MITAC hergestellt, dem Auftragsproduzenten von Intel für Intel D2500HN. Das Mainboard basiert auf Intel D2500HN, ist aber mit der moderneren Braswell Plattform ausgestattet. Es ist bis mindestens Anfang 2020 erhältlich.
- Support Intel Braswell Dual core/Quad core processor
- Intel HD graphics and DriectX 12 support
- Dual channel DDR3L with two connectors for MAX. 8GB memory
- Integrated Six-channel High Definition audio
- Features 2 SATA 6Gb/s
- Four USB3.0 ports
- One PCIeX1 connector for the future Add-in card
- One PCI Express Mini Card connector for expansion card like Wifi
- Dual Display capability with VGA and HD-Out
Name: Mitac PD14RI (Intel D2500HN2)
Form Factor: Mini-ITX Mainboard
CPU: Intel® Celeron® Processor N3050 (2M Cache, up to 2.16 GHz)
Chipset: Intel Braswell
Graphics: VGA + HDMI
Memory: 2x SO-DDR3L Low Voltage, 8GB max, Dual channel
Power: 24 Pin ATX
LAN: 1x Realtek RTL8111G 10/100/1000 MBit
Connectors (rear):
- 4x USB 3.0
- 1x LAN RJ-45
- 3x Audio
- 1x PS/2
- 1x LPT
- 1x RS232
- 1x VGA Audio RealTek ALC662 5.1 (6-channel) High Definition Audio Connectors (internal) - 2x SATA (6GB/s)
- 1x USB 2.0
- 1x RS232
- Front Audio, S/PDIF - 1x PCIe X1
- 1x Mini-PCIe (Half-size)
Included:
- Mitac PD14RI (D2500HN2) Mainboard (with 2x 2.16Ghz Braswell Celeron CPU)
- I/O ATX rear plate
- 1x SATA cable
nicht verfügbar, Vorbestellung möglich
Jetway NF592-Q170 (Intel Q170 Express)
394,72 €*
Jetway NF592-Q170 (Intel Q170 Express)
- Intel® Q170 Express Chipset
- Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
- Supports Dual Channel DDR3L 1600 MHz, 2 x SO-DIMM, up to 16GB system memory
- 7 * Intel i211AT & 1 * i219LM Gigabit LAN
- Support Intel vPro, Active Management Technology ( iAMT 11.0)
- Side PCI Express x4 Slot
- 6-ports SATA III 6Gb/s support RAID 0, 1, 5, 10
- 3G module with SIM card slot
- 1 * internal HDMI port
- 2 * USB 3.0, 4 x USB 2.0
- 1 * mini-PCIe, 1 x PCIex4
- 1 * Onboard TPM (option)
Form Factor
Dimensions
- Thin Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
Processor System
CPU
- Intel ® LGA 1151 Socket Core i7/i5/i3/Pentium Processor
- Supports Hyper-Threading Technology
Core Number
- (By CPU)
Max Speed
- (By CPU)
L2 Cache
- (By CPU)
Chipset
- Intel Q170 Express chipset
BIOS
- AMI 128Mb SMT Flash ROM
Expansion Slot
Mini-PCIe
- 1 (full size)
mSATA
- 0
PCIe
- 1 (x4)
SIM
- 1
Memory
Technology
- Dual Channel DDR3L 1600 MHz SDRA M
Max.
- 16GB
Socket
- 2 x SO-DIMM
Graphics
Controller
- (by CPU)
VRAM
- Shared Memory
VGA
- 0
LVDS
- 0
HDMI
- 1 (Internal)
MultiDisplay
- No
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- GbE LAN : Intel i211AT * 7 & i219LM * 1
Connector
- 8 x RJ 45
SATA
Max Data Transfer Rate
- 6 x SATAIII (6.0Gb/s)
Rear I/O
VGA
- 0
HDMI
- 0
Ethernet
- 8
USB
- 2 x USB 3.0
Audio
- 0
Serial
- 1 x RS-232
PS2
- 0
DC-input
- 0
Internal Connector
USB
- 4 x USB 2.0
LVDS / inverter
- 0
Serial
- 0
SATA
- 6
mPCIe
- 1
mSATA
- 0
Chassis intrusion
- 1 (via 12pin header)
PS/2
- 1
Audio Header
- 0
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
- ATX PWR (4+24 pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certification s
Certifications
- CE, FCC, RoHS, REACH
Environment
Temperature
- Operating: 0°C – 60°C
- Storage: -20°C – 85°C
nicht verfügbar, Vorbestellung möglich
Mitac PH12SI Thin-ITX (Intel Q170, LGA1151 Skylake
197,66 €*
Mitac PH12SI Thin-ITX (Intel Q170, LGA1151 Skylake)
- Support 6th generation (Skylake) Intel ® Core™ i7, i5, i3 processors
- Dual channel DDR4 260-pin SO-DIMM
- Intel ® vPro business-grade technology support (with Q170 chipset)
- Dual high speed Gigabit Ethernet connection
- Two PCI Express Mini Card connector for expansion
- Features 3/4 SATA3 (6Gbps)
- Dual display connectivity by DP-out & HD-out
- Embedded LVDS/eDP connectivity
- Onboard 2/4 serial ports
Item Spec Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches]) Processor CPU Type : Intel Skylake-S Desktop platform
CPU Core : Dual Core / Quad Core
Socket : Socket LGA1151
TDP : Support up to 65W CPU types Chipset Chipset Series : Intel ® Q170 Chipset (Sku-D/I)
Chipset Series : Intel ® H110 Chipset (Sku-B) Memory Memory Type: DDR4 @ 1.2V, 2133MHz (Unbuffered Non-ECC)
Memory Channel: Dual Channel
Memory Capacity : Support total up to 16 GB
ECC Support : No Memory Socket: 260-pin So-DIMM socket 2 Display DP & HD-out connector
40P Embedded LVDS/eDP connector Audio Codec: HD audio codec, Realtek ALC662
1 x front audio Header (Mic/HP)
1 x standard header for DMIC
1 x audio header to support system stereo speaker Expansion Capability PCIe 3.0 x 4 slot 1 PCI Express Full-/Half-Mini Card slot 1 PCI Express Half-Mini Card slot 1 Peripheral Interfaces USB 2.0 2x5 header 3 (Sku-D/I)
2 (Sku-B) Serial port header 4 SATA 3.0 Gb/s 4 (Sku-D/I)
3 (Sku-B) Legacy I/O Nuvoton NCT6104D Security Intel® vPro™ Technology support
TPM security by Nuvoton NPCT650AAAYX (optional) LAN Support Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
Intel® I210 Gigabit (10/100/1000 Mb/s) LAN BIOS Support for Advanced Configuration and Power
Interface (ACPI) setting Instantly Available PC Technology Suspend to RAM support
Wake on PCI Express, LAN, front panel, serial, and USB ports Hardware Monitor Subsystem Hardware monitoring through the Nuvoton6104D legacy I/O controller, including:
Remote thermal sensor
Speed control for 4-pin system fan header and 4-pin CPU fan header Power Requirement DC-in 19V(2.5mm/ ID, 5.5mm/ OD)/ ATX 4pin 19V (Sku-D/B)
DC-in 12V/19V (2.5mm/ ID, 5.5mm/ OD)/ ATX 4pin 12V (Sku-I) Environment Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20°C to +70°C Safety CE
FCC
nicht verfügbar, Vorbestellung möglich
Jetway NF594-Q170 (Intel Q170 Express)
316,42 €*
Jetway NF594-Q170 (Intel Q170 Express)
Intel® Q170 Express Chipset
Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
2 * Dual Channel DDR4 2133MHz up to 32GB
2* GbE LAN (Intel i211AT & i219LM)
Support Intel vPro, Active Management Technology (iAMT 11.0)
Integrated Realtek ALC662VD Audio CODEC 6-CH
Support 1*PCIe x16 slot
Support 4 * SATAIII (6.0Gb/s), Support RAID 0,1,5,10
HDMI/DP/DVI-D Video Outputs
Built-in Watchdog Timer Technology
Mini-ITX Form Factor (170mm * 170mm)
nicht verfügbar, Vorbestellung möglich
Mitac PD10RI (Intel DN2800MT3) Half-Height (Intel
188,73 €*
Mitac PD10RI (Intel DN2800MT3) Half-Height (Intel Braswell J3160 4x2.24Ghz CPU, 10-19VDC) [ LÜFTERLOS ]
Dieses Board wird von MITAC, dem Auftragsproduzenten von Intel für Intel DN2800MT hergestellt. Das Mainboard basiert auf dem Intel DN2800MT, ist aber mit der moderneren Braswell Plattform ausgestattet. Das PD10RI ist verfügbar bis mindestens Q01/2020.
- Intel Braswell J3160 quad cores processor
- Intel HD graphics and DriectX 11 support
- Dual channel DDR3L with two connectors for MAX. 8GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS connectivity
- Features high speed Gigabit Ethernet connection
- Features 2 SATA 3Gb/s
- Four Hi-Speed USB3.0 ports support
- Two Power RS232 + Two RS232/422/485 ports
- One PCIe connector for the future Add-in card
- Two PCI Express Mini Card connector for expansion card
- 8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector
nicht verfügbar, Vorbestellung möglich
Jetway NFS5Z-IH81 (Intel H81)
217,41 €*
Jetway NFS5Z-IH81 (Intel H81)
- 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor
- All Solid Capacitors, Enhanced 10KV ESD Protection
- Supports DDR3/DDR3L-1600 SO-DIMM up to 8GB Total
- Supports up to 2 Displays, VGA Supports Dummy Display/Headless
- 12 * Serial Ports (1 * External, 11 * Internal)
- ECO-design for EuP/ErP
Specification:
Jetway NFS5Z-IH81 Mini-ITX Motherboard
- Processor: 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor, Socket LGA 1150 (Formerly Haswell)
- Chipset: Intel H81 (AKA Lynx Point)
- Memory: 1 x 204-pin SODIMM DDR3/DDR3L-1600 (up to 8 GB)
- Graphics: Requires Intel Core processor with Intel HD Graphics
- Audio: Realtek ALC662 5.1 Channel Audio
- LAN: 2 x Realtek RTL8111G Gigabit LAN
- Storage: 2 x SATA3 6Gb/s Ports, 1 x mSATA/mini-PCI Express Combo Slot (Full-size)
- Super: IO FINTEK F81866A
Back Panel Connectors:
1 PS/2 Keyboard/Mouse Combo Port
2 USB 2.0
1 Serial Port (RS232/422/485, +5V/+12V)
2 VGA
1 HDMI
4 USB 3.0
2 RJ45 LAN (10/100/1000)
3 3.5mm Audio
Onboard I/O Connectors:
1 PCI-E 3.0 x16 Slot (by 16-lane)
1 mSATA/mini-PCI Combo Slot (Full-size)
1 Mini-PCI Express Slot (Full-size)
2 SATA3 6Gb/s Connectors
2 USB Pin Headers for up to 4 additional USB 2.0 Ports
11 Serial port headers (10 * RS232, 1 * RS232/422/485)
1 GPIO header
1 AT/ATX power mode jumper
1 Chassis Intrusion header
1 SIM Card Slot (Bottom)
1 Front Panel header
1 9-pin Front Audio header
1 8-pin LAN activity header
3 Fan headers
1 24-pin ATX Power Connector
1 4-pin 12V ATX Power Connector
Market Segments Supported:
- Digital Security & Surveillance
- Digital Signage
- Gaming
- Industrial Automation/Control
- Medical
- Retail (POS/Kiosk/ATM)
- Networking/Storage Server/Mail Server/Print Server
- Thin Client
- HTPC
nicht verfügbar, Vorbestellung möglich
Jetway JNF9FL-H61 (Intel H61)
148,16 €*
Jetway JNF9FL-H61 (Intel H61)
- INTEL® H61 Chipset
- Support INTEL® LGA 1155 Socket Core i3/i5/i7 & Pentium Processor
- 2 * Dual Channel SO-DIMM DDR3-1333/1066 up to 16GB
- Support CPU Smart FAN
- Supports 1 * Gigabit LAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- Thin Mini ITX form factor
- CPU
- INTEL® LGA 1155 Socket Core i3/i5/i7 & Pentium Processor
- Chipset
- INTEL® H61 Chipset
- Memory
- 2 * SO-DIMM Sockets Dual Channel DDR3 1066/1333 SDRAM up to 16 GB
- Expansion Slots
- 1 *PCIe x 1
- 1 * half size Mini PCI-E socket
- Storage
- 2 * Serial ATA2 3Gb/s connectors
- 1 * full size mSATA socket (mSATA only)
- Audio
- Realtek ALC662-VD-GR 6-Channel HD Audio CODEC
- Ethernet LAN
- IN82579 PCI-E Gigabit Ethernet LAN *1
- USB
- Embedded 8 * USB 2.0/1.1
-
- Special Features
- Support ACPI S3
- Support CPU Smart FAN
- Support Watch Dog
- Rear Panel I / O
- 4 * USB 2.0/1.1 ports
- 1 * HDMI
- 1 * 19V DC-in jack
- 1 * RJ-45 port
- 1 * DVI-I port
- 1 * MIC-in & 1 * Line-out jacks
- Internal I / O
- 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
- CPU /System Fan connectors;
- 1 * 24-bits Dual CH LVDS & 1 * Inverter connector
- 1 * CIR header
- 1 * AUDIO header
- 1 * Speaker header
- 1 * DMIC header
- 1 * Front panel header
- 1 * Monitor switch header
- 1 * 2-pin ATX Power connector
- BIOS
- AMI 8Mb DIP Flash ROM
- Form Factor
- Thin Mini ITX Form Factor (170mm x 170mm)
- Functional
- ATM, POS, AIO, Digital Signage
- Certificate
- CE, FCC, RoHS
- Temperature
- Operating within 0~60 centigrade
- Storage within -20-85 centigrade
nicht verfügbar, Vorbestellung möglich
Jetway NLBT-I2930 (Intel Bay-Trail)
227,41 €*
Jetway NLBT-I2930 (Intel Bay-Trail)
- INTEL Bay Trail I1900 / N2930 Quad Core processor
- Support DirectX 11 3D Graphics Acceleration
- Support DDR3L 1333
- Integrated HD Audio CODEC
- Support 1*PCI Express Gigabit LAN
- Support 1*USB3.0 port
- Onboard 1*MiniPCI-E connector
- Onboard 1 *M- SATA connector
- 2 Phase CPU Power Support
- Support Slim hard drive design
- Support Amplifier function(3W)
- Support Thunder Protection Function
- Thin mini ITX Form Factor(170mm X170mm)
- CPU -Chipset
- INTEL Bay Trail I1900 / N2930 Quad Core processor
- INTEL ® Bay Trail SOC chipset
- 2 Phase CPU Power Support
- I.O Chipset
- Fintek® F71869A
- Memory
- 1* SO-DIMM slot
- Support DDR3L 1333
- Max. capacity of system memory up to 8GB
- Expansion Slots
- 1* Mini PCI-E connector
- 1* PCIex1 slot
- Storage
- 1* Serial ATA2 3Gb/s connector or 1*SATA +Power Connector(7+15Pin)
- 1* M-SATA Connector
- Audio
- AVLC887 Audio CODEC
- HD Audio CODEC
- Ethernet LAN
- Realtek® RTL8111G Chip
- PCI Express Gigabit LAN
- LVDS
- Onboard 24-bit Dual channel
- USB
- 5* USB 2.0/1.1(3 distribute in back panel, 2 distribute in mid-board)
- 1* USB3.0
- Special Features
- Support CPU Smart Fan
- Support Watch dog Technology
- Support GPIO Technology
- Support VGA header
- Support Power On board
- Support Amplifier function(3W)
- Support Slim hard drive design
- Support 1*RS422/RS485 COM header
- Thunder Protection Function
- All Solid Capacitor design
- All Power Pack MOSFET design
- Back Panel I / O
- 3* USB 2.0/1.1 ports
- 1* USB3.0 port
- 1* RJ-45 port
- 1* Line-out port
- 1* VGA port
- 1* COM port
- 1* 12V DC in
- Internal I / O
- 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports
- 2* CPU / Chassis Fan connectors
- 5* COM headers(1*RS422/RS485)
- 1* PS2/KB header
- 1* 4-pin ATX 12V Power connector
- 1* 4-pin SATA Power connector
- 1* 12-pin VGA header
- 1* 20-pin HDMI header
- 1* 24-bit Dual Channel LVDS header
- 1* GPIO header
- 1* Mini PCI-e connector
- 1* M-SATA Connector
- 1* SATA +Power Connector(7+15Pin)(Option)
- 1* Audio header
- 1* Front panel header
- 1* HDMI _SPDIF header
- BIOS
- AMI 64MB DIP Flash ROM
- Form Factor
- Thin mini ITX Form Factor(170mm X 170mm)
nicht verfügbar, Vorbestellung möglich
Jetway NF9VT-2930 (Intel Bay-Trail)
227,41 €*
Jetway NF9VT-2930 (Intel Bay-Trail)
Specification:
- Intel® Bay Trail-D/M/I Processor
- Supports 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
- Support 1 * Serial ATAII (3Gb/s) Device
- Gigabit LAN: 1 * Realtek LAN
- 1 * Mini-PCIe, 1 * PCIe x1 slot
- 4 * RJ45 ports for External COM ports, 2 * Internal COM
- 1 * USB 3.0, 7 * USB 2.0
- 1 * VGA, 1 * 24-bit Dual Channel LVDS
- +12V DC-in jack
- Touch Panel Control IC integrated on board
- Amplifier implement to support 3W Speaker
- Support CPU Over-Temperature protection
- Support CPU Over-Current/Under Voltage protection
- Support DRAM Over-Current/Under Voltage protection
- Support CPU Smart Fan & DC Fan
- Thin Mini ITX factor (170mm * 170mm) within 20mm height
- Form Factor / Dimensions: Thin Mini-ITX (6.7-in * 6.7-in, 170 * 170mm) within 20mm height Processor System
- CPU: Intel ® Bay Trail-D/M/I Processor
Core Number
- (By CPU)
Max Speed
- (By CPU)
L2 Cache
- (By CPU)
Chipset
- SoC
BIOS
- AMI 64Mb Flash ROM
Expansion Slot
PCI
- 0
Mini-PCIe
- 1 (full size)
mSATA
- 1 (full size)
PCIe
- 1 (x1)
CFast Card Socket
- 0
CF Card Socket
- 0
Memory
Technology
- Single/Dual Channel DDR3L 1333/1066 MHz SDRAM
Max.
- 4/8GB
Socket
- 1 * SO-DIMM
Graphics
Controller
- Intel® HD Graphics
VRAM
- Shared Memory
VGA
- 1(Internal)
LVDS
- 1 (Dual Channel 24-bit, Max. resolution 1920 * 1200@60Hz)
HDMI
- 0
DVI-I
- 0
DisplayPort
- 0
MultiDisplay
- Yes (Dual Display)
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- GbE LAN: Realtek RTL8111 G
Connector
- 1 * RJ 45
SATA
Max Data Transfer Rate
- 1 * SATAII (3.0Gb/s)
Rear I/O
VGA
- 0
DVI-I
- 0
HDMI
- 0
DisplayPort
- 0
Ethernet
- 1
USB
- 4 (1 * USB 3.0, 3 * USB 2.0)
Audio
- 0
Serial
- 4 (4 * RJ45)
RJ11
- 1
eSATA
- 0
PS2
- 1
DC-input
- 1
Internal Connector
USB
- 4 (4 * USB 2.0 via 10pin header)
PS2
- 0
LVDS / inverter
- 1/1
VGA
- 1
Serial
- 2 (2 * RS-232 with 5V/12V selectable header, 1 * RS232/422/485)
SATA
- 1 * SATAII (3.0Gb/s)
mPCIe
- 1 (full size)
Parallel
- 1
mSATA
- 1 (full size)
CIR
- 0
GPIO 8-bit
- 4in / 4 out
Chassis intrusion
- 1 (via 2pin header)
Audio Header
- 1 * FP_AUDIO (1 * 2CH Line Out ,1 * MIC ,1 * 2CH Audio w/3W Amp)
SMBUS(I2C)
- 1
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
- +12V DC-in jack
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
- CE, FCC, RoHS, REACH
Environment
Temperature
- Operating: 0°C – 60°C
- Storage: -20°C – 85°C
nicht verfügbar, Vorbestellung möglich
Jetway NF693-H110 (Intel H110 Skylake)
227,41 €*
Jetway NF693-H110 (Intel H110 Skylake)
- Intel® LGA1151 Socket Core i3, i5, i7 & Pentium Processors (max. 65W)
- Intel® H110 Express Chipset
- Support Dual Channel DDR4 2133MHz, 2 * SO-DIMM slot, up to 32GB memory
- Realtek ALC662 6-Channel HD Audio
- 2 * Realtek Giga LAN
- Support 2 * SATA 3.0 (6Gb/s), 1 * mPCIe/mSATA and 1 * M.2 M key-2242, 2260
- Support HDMI/DP/eDP, dual displays
- 4 * External RS232 and 2 * internal COM (COM1 supports RS232/422/485)
- 4 * External USB3.0 & 4 * Internal USB1.1/2.0
- 1 * PCIe x16 slot
- 1 * SIM Card Holder
Form Factor
Dimensions
- Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
- Intel LGA 1151 Socket Core i7 / i5 / i3 & Pentium Processors
Core Number
- (By CPU)
Max Speed
- (By CPU)
L2 Cache
- (By CPU)
Chipset
- Intel H110 Chipset
BIOS
- AMI 64Mb Flash ROM
Expansion Slot
Mini-PCIe
- 1 (full size, co-lay with mSATA)
mSATA
- 1 (full size, co-lay with mini-PCIe)
M.2
- 1 (M key-2242, 2260)
PCIe
- 1 * PCIe x16
SIM card holder
- 1
Memory
Technology
- Dual Channel DDR4 2133MHz
Max.
- 32GB
Socket
- 2 * SO-DIMM
Graphics
Controller
- Intel ® Gen9 Graphics supports DX 11/12, OGL4.3 / 4.4
VRAM
- Shared Memory
VGA
- 0
DVI-D
- 0
HDMI
- 1 (Max. Resolution : 3840*2160@24Hz)
DP
- 1 (Max. Resolution : 4096*2304@60Hz)
eDP
- 1 (Max. Resolution : 4096*2304@60Hz)
MultiDisplay
- Dual Display
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- PCIe GbE LAN : Realtek RTL8111G
Connector
- 2 * RJ 45
Audio
CODEC
- HD Audio : Realtek ALC662
Channel
- 6 Channel
SATA
Max Data Transfer Rate
- 2 * SATAIII (6.0Gb/s), 1 * mini-SATA III and 1 * M.2
RAID
- No
Rear I/O
VGA
- 0
DP
- 1
HDMI
- 1
Ethernet
- 2
USB
- 4 * USB 3.0
Audio
- 3 ( Line-In, Line-Out, MIC)
Serial
- 4 (COM1 support RS232/422/485 )
LED
- 0
DC-input
- 0
Internal Connector
HDMI
- 0
USB
- 4 * USB 2.0
eDP
- 1
Serial
- 2 (COM5 is optional to support RS232/422/485)
SATA
- 2
mPCIe
- 1 (full size, co-lay with mSATA )
mSATA
- 1 (full size, co-lay with mPCIe)
M.2
- 1 (M key-2242, 2260)
SIM card holder
- 1
Chassis intrusion
- 1
PS/2
- 1
GPIO
- 1 (8 bit programmable inputs/outputs)
SMBUS/ I2C
- 1
Audio Header
- 1
TPM
- 1 (onboard option)
AT mode
- 1
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
- 24 pin/4 pin ATX PWR Connector
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
- CE, FCC, RoHS, REACH
Environment
Temperature
- Operating: 0°C – 60°C
- Storage: -20°C – 85°C
nicht verfügbar, Vorbestellung möglich
Jetway ADD-ON HM1-LAN4 (4x LAN, 1x GPIO) [für HM-1
98,65 €*
Jetway ADD-ON HM1-LAN4 (4x LAN, 1x GPIO) [für HM-1000]
Dimension: 195.8 x 162.0 mm
Chipset: INTEL® i211AT GbE controller
Feature:
1. Support 4*GbE LAN 2. Support 16-bit GPIO
3. GPIO Support 5V/12V/24V Power
nicht verfügbar, Vorbestellung möglich
Jetway ADD-ON HM1-USB3.0X8 (8x USB3.0, 1x GPIO) [f
98,65 €*
Jetway ADD-ON HM1-USB3.0X8 (8x USB3.0, 1x GPIO) [für HM-1000]
Dimension: 195.8 x 162.0 mm
Chipset: ASMedia- ASM1042A USB3.0 controller
Feature:
1. Support 8*USB3.0
2. Support 16-bit GPIO
3. GPIO Support 5V/12V/24V Power
nicht verfügbar, Vorbestellung möglich
Jetway NF596-3160 (Intel Braswell)
295,72 €*
Jetway NF596-3160 (Intel Braswell)
- Intel® Braswell –N3160 Processor
- 1 * DDR3L 1600MHz SO-DIMM up to 8GB
- Support DVI-D, HDMI, LVDS 3 Independent Display
- Realtek RTL8111G PCIe GbE, 2 * RJ45 ports
- Support 1 * Serial ATAIII (6Gb/s),1 * Full size mSATA
- 1 * RS232/422/485(COM1), 5 * COM (RS232)
- 4 * External USB3.0 & 3 * Internal USB1.1/2.0
- 1 * PCIe x1 slot, 1 * Full size mPCIe
- 1 * SIM Card Holder
- Integrated Realtek ALC662VD Audio CODEC with 4-CH
- Mini-ITX Form Factor (170mm * 170mm)
Form Factor
Dimensions
- Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
- Intel® Braswell – N3160 Processor
Core Number
- 4
Max Speed
- 2.24GHz
L2 Cache
- 2M
Chipset
- SoC
BIOS
- AMI 64Mb Flash ROM
Expansion Slot
Mini-PCIe
- 1 (full size)
mSATA
- 1 (full size)
PCIe
- 1 (x1)
SIM card holder
- 1
Memory
Technology
- 1 * DDR3L 1600 MHz SDRAM
Max.
- 8GB
Socket
- 1 * SO-DIMM
Graphics
Controller
- Intel® HD Graphics
VRAM
- Shared Memory
VGA
- 0
DVI-D
- 1 ( DVI-D, Max. Resolution : 1920 * 1080@60Hz)
LVDS
- 1 ( 24-bits Dual Channel, Max. Resolution : 1920 * 1080@60Hz)
HDMI
- 1 (Max. Resolution : 1920 * 1080@60Hz)
MultiDisplay
- Yes ( Triple Independent Display )
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- PCIe GbE LAN : Realtek RTL8111G
Connector
- 2 * RJ 45
Audio
CODEC
- HD Audio : Realtek ALC662VD
Channel
- 4 Channel
SATA
Max Data Transfer Rate
- 1 * SATAIII (6.0Gb/s)
RAID
- No
Rear I/O
VGA
- 0
DVI-D
- 1
HDMI
- 1
Ethernet
- 2
USB
- 4 * USB 3.0
Audio
- 1
Serial
- 2 (1 * RS232, 1 * RS232/422/485 with 5V/12V selectable header)
PS2
- 0
DC-input
- 1 * 12V DC-in
Internal Connector
VGA
- 0
USB
- 3 * USB 2.0
LVDS / inverter
- 1
Serial
- 4 * RS232 with 5V/12V selectable header
SATA
- 0
mPCIe
- 1 (full size)
mSATA
- 1 (full size)
M.2
- 0
SIM card holder
- 1
Chassis intrusion
- 1
PS/2
- 1
GPIO
- 1 ( 4in/4 out)
SMBUS/ I2C
- 1 ( I2C)
Audio Header
- 1 ( Line-out & MIC)
Audio Amplifier Header
- 0
AT mode
- 1
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
- +12V DC-in PWR jack
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
- CE, FCC, RoHS, REACH
Environment
Temperature
- Operating: 0°C – 60°C
- Storage: -20°C – 85°C
nicht verfügbar, Vorbestellung möglich
Mitac PD10AI (Intel DN2800MT4) Half-Height (Intel
182,43 €*
Mitac PD10AI (Intel DN2800MT4) Half-Height (Intel Apollo Lake N3350 2x2.4Ghz CPU, 8-24VDC) [ LÜFTERLOS ]
Dieses Board wird von MITAC hergestellt, dem Auftragsproduzenten von Intel für Intel DN2800MT. Das Mainboard basiert auf Intel DN2800MT, ist aber mit der moderneren Apollo Lake Plattform ausgestattet. PD10AI ist verfügbar bis mindestens Q1/2022.
- Intel Apollo Lake N4200/N3350 quad/dual cores processor
- Intel HD graphics and DriectX 12 support
- Dual channel DDR3L with two connectors for MAX. 8GB memory
- Triple independent display from HD-Out, DP-out, and eDP / LVDS connectivity
- Features high speed Gigabit Ethernet connection
- Features 2 SATA 6Gb/s
- Four Hi-Speed USB3.0 ports support
- Two RS232 support, optional for four extra COM ports
- One PCIe connector for the future Add-in card
- Two M.2 slot for storage and wireless expansion
- 8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches]) Processor Chipset Intel Braswell N3350
Processor with integrated graphics Memory
- Support for dual channel DDR3L 1867 SO-DIMMs
- Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM)
- 204-pin DDR3L SO-DIMM
2 Graphics
- Integrated graphics:
- Digital displays (HD-Out)
- Analog displays (VGA)
- Internal flat panel displays:
- LVDS
- Embedded DisplayPort* eDP*
- External graphics support via a PCI Express 2.0 x1 graphics add-in card connector
Audio
- 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC283 audio codec
supporting:
- Analog stereo line-out (back panel jack)
- In-chassis stereo speakers support (3 W/3 via an internal header)
Expansion Capability
- PCI Express x1 add-in card connector
1
- M.2 (2242/2260/2280) with USB2.0 and SATA III signal for SSD
1
- M.2 (2230) with PCIex1 and USB2.0 signal for wireless
1 Peripheral Interfaces
- USB 2.0 front panel ports
2 (Header)
- USB 3.0 back panel connectors (blue)
4
- SATA 6.0 Gb/s
1
- SATA 6.0 Gb/s port (multiplexed with an m.2 slot)
1 Legacy I/O
- Legacy I/O Controller that provides:
- Serial port header
2
- Parallel port via an onboard header (Option with MiAPI header)
1 LAN Support 2x Intel I211-AT (10/100/1000 Mb/s) Ethernet LAN controller BIOS
- BIOS resident in a Serial Peripheral Interface (SPI) Flash device
- Support for Advanced Configuration and Power Interface (ACPI), and System Management
BIOS (SMBIOS)
Hardware Management Nuvoton NCT6793D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
- 2x 4-pin system fan header
Power Requirement
- DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD)
- Internal 2 pin power connector
Environment
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
Safety
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Mitac PD10AI-N4200 (Intel DN2800MT4), 4x2.5Ghz CPU
220,75 €*
Mitac PD10AI-N4200 (Intel DN2800MT4) Half-Height (Intel Apollo Lake N4200 4x2.5Ghz CPU, 8-24VDC) [ LÜFTERLOS ]
Beschreibung:
Dieses Board wird von MITAC hergestellt, dem Auftragsproduzenten von Intel für Intel DN2800MT. Das Mainboard basiert auf Intel DN2800MT, ist aber mit der moderneren Apollo Lake Plattform ausgestattet. PD10AI ist verfügbar bis mindestens Q1/2022.
- Intel Apollo Lake N4200/N3350 quad/dual cores processor
- Intel HD graphics and DriectX 12 support
- Dual channel DDR3L with two connectors for MAX. 8GB memory
- Triple independent display from HD-Out, DP-out, and eDP / LVDS connectivity
- Features high speed Gigabit Ethernet connection
- Features 2 SATA 6Gb/s
- Four Hi-Speed USB3.0 ports support
- Two RS232 support, optional for four extra COM ports
- One PCIe connector for the future Add-in card
- Two M.2 slot for storage and wireless expansion
- 8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters [6.7 inches] x 170.18 millimeters [6.7 inches])
Technische Daten:
- Processor: Chipset Intel Braswell N4200, Processor with integrated graphics Memory
- Support for dual channel DDR3L 1867 SO-DIMMs
- Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM), 204-pin DDR3L SO-DIMM
- Integrated graphics: Digital displays (HD-Out), Analog displays (VGA), Internal flat panel displays: LVDS, Embedded DisplayPort* eDP*
- External graphics support via a PCI Express 2.0 x1 graphics add-in card connector
- Audio : 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC283 audio codec, supporting: analog stereo line-out (back panel jack), In-chassis stereo speakers support (3 W/3 via an internal header)
- Expansion Capability: PCI Express x1 add-in card connector: 1, M.2 (2242/2260/2280) with USB2.0 and SATA III signal for SSD: 1, M.2 (2230) with PCIex1 and USB2.0 signal for wireless: 1 Peripheral Interfaces, USB 2.0 front panel ports: 2 (Header), USB 3.0 back panel connectors (blue): 4
- SATA 6.0 Gb/s: 1
- SATA 6.0 Gb/s port (multiplexed with an m.2 slot): 1
- Legacy I/O Controller that provides: Serial port header: 2, Parallel port via an onboard header (Option with MiAPI header)
- 1 LAN Support 2x Intel I211-AT (10/100/1000 Mb/s) Ethernet LAN controller BIOS
- BIOS resident in a Serial Peripheral Interface (SPI) Flash device
- Voltage sense to detect out of range power supply voltages, Nuvoton NCT6793D based subsystem
- Thermal sense to detect out of range thermal values, Nuvoton NCT6793D based subsystem
- 2x 4-pin system fan header
- PSU: DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD), Internal 2 pin power connector
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
- Certification: CE, FCC
nicht verfügbar, Vorbestellung möglich
Jetway NF697-Q170 (Intel Q170 Express)
336,29 €*
Jetway NF697-Q170 (Intel Q170 Express)
- Intel® LGA1151 Skylake/Kabylake Processor (TDP 65W)
- Intel® Q170 Express Chipset
- Support DDR4 2133, 2 * SO DIMM slot, up to 32GB memory
- Realtek ALC662VD Audio
- 2 * Intel Giga LAN
- Support 4 * SATA III (6Gb/s), support RAID 0, 1, 5, 10
- Support 2 * DP/HDMI/LVDS, triple displays
- 2 * External COM and 4 * internal COM
- 4 * External USB3.0 & 2 * Internal USB1.1/2.0
- 1 * mini PCIe slot & 1 * PCIe x4 side slot
- 1 * SIM Card Holder
- 9 ~ 24V DC IN power
Form Factor
Dimensions
- Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
- Intel® LGA1151 Skylake/Kabylake Processor (TDP 65W)
Core Number
- (by CPU)
Max Speed
- (by CPU)
L2 Cache
- (by CPU)
Chipset
- Q170
BIOS
- AMI Flash ROM
Expansion Slot
PCI
- 0
Mini-PCIe
- 1 (full size)
mSATA
- 0
PCIe
- 1 * PCIe x4 side-slot (4 * PCIe x1 combo signals)
M.2
- 0
CFast Card Socket
- 0
CF Card Socket
- 0
SIM Card Holder
- 1
Memory
Technology
- Dual CH DDR4 2133 MHz SDRAM
Max.
- 32GB
Socket
- 2 * SO-DIMM
Graphics
Controller
- Intel® HD Graphics
VRAM
- Shared Memory
VGA
- 0
LVDS
- 1 (Max Resolution : 1920x1080@60Hz)
eDP 1.3
- 0
HDMI 1.4
- 1 (Max Resolution : 3840x2160@30Hz)
DVI-D
- 0
DisplayPort 1.2
- 2 (Max Resolution : 4096 x 2304@60Hz)
MultiDisplay
- Triple Displays
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- 2 * Intel ® Gigabit LAN (i211AT * 1 & i219LM * 1)
Connector
- 2 * RJ 45
Audio
CODEC
- HD Audio : Realtek ALC662VD
Channel
- Line-In, Line-Out, MIC
SATA
Max Data Transfer Rate
- 4 * SATAIII (6.0Gb/s)
Rear I/O
VGA
- 0
DVI-D
- 0
HDMI
- 1
DisplayPort
- 2
Ethernet
- 2
USB
- 4 * USB 3.0
Audio
- 1 (Line-in, Line-out, MIC)
Serial
- 2 (COM2: RS232/422/485)
eSATA
- 0
PS/2
- 0
DC-input
- 1
Internal Connector
USB
- 2 * USB 2.0
PS/2
- 1
LVDS / inverter
- 1
eDP
- 0
VGA
- 0
Serial
- 4
SATA
- 4 * SATAIII (6.0Gb/s)
mPCIe
- 1 (full size)
Parallel
- 0
mSATA
- 0
M.2
- 0
GPIO
- 1 (8 bit)
Chassis intrusion
- 1
Audio Header
- 1
SMBUS/ I2C
- 1
AT mode
- 1
TPM Header
- 1 (on board option)
Others
- Support RAID 0, 1, 5, 10
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
- +9~24V DC-in
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
- CE, FCC, RoHS, REACH
Environment
Temperature
- Operating: 0°C ~ 60°C
- Storage: -20°C ~ 85°C
Warranty
Warranty
- 2 Years Limited Warranty
Packing
Packing
- Net Weight:
- Gross Weight:
- Color Box dimension:
nicht verfügbar, Vorbestellung möglich
Jetway JNF791-3855 (Intel Skylake U)
266,92 €*
Jetway JNF791-3855 (Intel Skylake U)
- Intel® Skylake U/Kabylake U CPU, DDR4 up to 32GB, support max 4K display resolution
- Intel® Skylake-U/Kabylake-U Processor (TDP 15W) Default is 3855U/3865U
- Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
- Realtek ALC662VD Audio
- 2 * Realtek Giga LAN
- Support 1 * SATA III (6Gb/s)
- Support HDMI/VGA/LVDS/eDP, triple displays
- 1 * External RS232/422/485 and 9 * internal RS232
- 4 * External USB3.0 & 5 * Internal USB1.1/2.0
- 1 * Mini-PCIe/mSATA slot & 1 * Mini-PCIe slot & 1 * PCIe x 1 slot
- 1 * RJ-11 & PS/2 connector
- 12V DC IN power
Form Factor
Dimensions
– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel® Skylake-U/Kabylake-U Processor (TDP 15W) Default is 3855U/3865U Core Number
– (by CPU)
Max Speed
– (by CPU)
L2 Cache
– (by CPU)
Chipset
– SoC
BIOS
– AMI Flash ROM
Expansion Slot
Mini-PCIe
-1 (full size, shared with mSATA) & 1 (full size)
mSATA
– 1 (shared with mPCIe)
PCIe
– 1 * PCIe x1 slot
M.2
– 0
SIM Card Holder
– 0
Memory
Technology
– Dual CH DDR4 2133MHz SDRAM
Max.
– 32GB
Socket
– 2 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1
LVDS
1 (Max Resolution : 1920×1080@60Hz)
eDP 1.3
– 1
HDMI 1.4
– 1 (Max Resolution : 4096×2304@24Hz)
MultiDisplay
– Triple Displays
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 2 * Realtek® 8111H Gigabit LAN
Connector
– 2 * RJ 45
Audio
CODEC
– HD Audio : Realtek ALC662VD
Channel
– Line-Out, MIC
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
HDMI
– 1
Ethernet
– 2
USB
– 4 * USB 3.0
Audio
– 1 (Line-out, MIC)
Serial / Parallel
– 1 / 1 (COM1: RS232/422/485)
RJ11
– 1 (12V/24V selectable)
PS2
– 1
DC-input
– 1
Internal Connector
USB
– 5 * USB 2.0
PS/2
– 0
LVDS / inverter
– 1
Serial
– 9
SATA
– 1 * SATAIII (6.0Gb/s)
mPCIe
– 1 (full size, shared with mSATA) & 1 (full size)
mSATA
– 1 (shared with mPCIe)
M.2
– 0
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM Header
– N/A
Others
– 3W audio amplifier
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
– 12V DC-in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Mitac PD10KS 3.5-SBC (Intel Kaby Lake, i3-7100U)
989,72 €*
Mitac PD10KS 3.5-SBC (Intel Kaby Lake, i3-7100U)
- Intel Kaby Lake ULV Core i3/i5/i7 Processor
- Intel HD graphics and DirectX 12 support
- Dual channel DDR4 with two connectors for MAX. 32GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS
connectivity
- Features high speed Dual Gigabit Ethernet
- Features 1 SATA 6Gb/s
- Four SuperSpeed USB3.0 ports support
- Three RS232 + One RS232/422/485 ports
- One PCI Express Mini Card connector for expansion
- One M.2 2232 (E key) for expansion
- 8 V to 24 V wide-range voltage input
Item Spec Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“) Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory
- 2 x 204-pin DDR4 SO-DIMM slot
- Max capacity up to 32GB
Audio Controller Realtek ALC283 Expansion Capability
- M.2 2230 (E Key) with (PCIex1/USB2.0)
1
- Mini PCIe (full length, USB/PCIe/SATA)
1 External I/O
- HDMI-out
1
- VGA
1
- USB3.0
4
- RJ-45
2
- Audio combo jack (Mic-in and Line-out)
1 Internal I/O
- LVDS/eDP
1
- 7-pin SATA connector
1
- 4-pin SATA power
1
- USB2.0
2
- RS-232
3
- RS-232/422/485
1
- Audio header supporting system stereo speaker or buzzer
1
- MiAPI header
1
- Chassis front panel header
1 SIO Controller NCT6104D LAN Support
- 1 x I219LM, 1 x I211AT
BIOS AMI UEFI Hardware Management
- Nuvoton NCT6104D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
Environment
- Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
- Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
- Relative Humidity: 95% @60°C non-condensing
Certification
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Jetway NF792-3160 (Intel Braswell)
276,91 €*
Jetway NF792-3160 (Intel Braswell)
- Intel® Braswell N3160 Processor
- Support DDR3L-1600, 2 * SO-DIMM slot, up to 8GB memory
- Support AES NI & TPM (option) for security issue
- Support HDMI/VGA/LVDS, triple displays
- 6 * COM & 3 * USB3.0 & 7 * USB2.0 & 1 * PCIex1 slot
- 1 * SIM Card Holder for 3G/LTE connection
Form Factor
Dimensions
– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel® Braswell N3160 Processor
Core Number
– 4
Max Speed
– 2.24GHz
L2 Cache
– 2MB
Chipset
– SoC
BIOS
– AMI Flash ROM
Expansion Slot
Mini-PCIe
– 1 (full size)
mSATA
– 0
PCIe
– 1 * PCIe x1 slot
M.2
– 1 (M Key 2242/2260)
SIM Card Holder
– 1
Memory
Technology
– Dual CH DDR3L 1600MHz SDRAM
Max.
– 8GB
Socket
– 2 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1
LVDS
– 1 (Max Resolution : 1920×1080@60Hz)
HDMI 1.4
– 1 (Max Resolution : 3840×2160@30Hz)
MultiDisplay
– Triple Displays
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 2 * Realtek® 8111H Gigabit LAN
Connector
– 2 * RJ 45
Audio
CODEC
– HD Audio : Realtek ALC662VD
Channel
– Line-In, Line-Out, MIC
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
HDMI
– 1
Ethernet
– 2
USB
– 3 * USB 3.0 & 1 * USB 2.0
Audio
– 1 (Line-in, Line-out, MIC)
Serial / Parallel
– 2 / 1 (COM1: RS232/422/485)
PS2
– 0
DC-input
– 0
Internal Connector
USB
– 6 * USB 2.0
PS/2
– 1
LVDS / inverter
– 1
Serial
– 4
SATA
– 1 * SATAIII (6.0Gb/s)
mPCIe
– 1 (full size)
mSATA
– 0
M.2
– 1 (M key 2242/2260)
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM Header
– 1 (on board option)
SIM Card Holder
– 1
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
– ATX power in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, LVD, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway IMB-1900-2L (Intel Bay Trail)
286,79 €*
Jetway IMB-1900-2L (Intel Bay Trail)
- Intel Celeron J1900 SoC Processor
- Up to 2 Displays, VGA, HDMI Header, 24-bit LVDS
- 12 * Serial Ports (10*RS232, 2*RS232/422/485/TTL)
- 2 * Gigabit LAN Ports, 1 * M.2 SATA 2242/2260
- Built-in +12V DC Power Jack
- ECO-design for EuP/ErP
Chipset
– INTEL® Celeron™ J1900 (2.0 GHz) quad-core processor
– 2 Phase CPU Power Support
I.O Chipset
– FINTEK F81866AD-I
Memory
– 1*SO-DIMM slot
– Support DDR3L 1333
– Max. capacity of system memory up to 8GB
Expansion Slots
– 1* Mini PCI-E connector
Storage
– 1* Serial ATA2 3Gb/s connector
– 1* M.2 Connector(2242/2260)
Audio
– ALC662 Audio CODEC
– HD Audio CODEC
Ethernet LAN
– REALTEK® RTL8111G Chip
– 2* PCI Express Gigabit LAN
LVDS
– Onboard 24-bit Dual channel
USB
– 1* USB3.0 Port
– 9* USB 2.0 (3 distribute in back panel, 6 distribute in mid-board)
Special Features
– Support CPU Smart Fan
– Support Watch dog Technology
– Support GPIO Technology
– Support VGA header
– Support HDIM header
– Support Power On board
– Support Amplifier function(3W)
– Support 2*RS422/RS485/RS232 COM ports
– COM1/COM2 Support TTL
– Thunder Protection Function
– All Solid Capacitor design
– All Power Pack MOSFET design
Back Panel I / O
– 1* USB3.0 port
– 3* USB 2.0 ports
– 2* RJ-45 ports
– 1* Line-out connector
– 1* MIC
– 1* VGA port
– 1* 12V DC in
Internal I / O
– 3* USB 2.0 headers for 6 USB 2.0 ports
– 1* CPU / Chassis Fan connectors
– 12* COM headers(COM1/COM2 For RS422/RS485/RS232 and TTL )
– 1* Parallel header
– 1* PS2/KB header
– 1* 4-pin ATX 12V Power connector
– 1* 4-pin SATA Power connector
– 1* 15-pin VGA header
– 1* 20-pin HDMI header
– 1* 24-bit Dual Channel LVDS header
– 1* GPIO header
– 1* Mini PCI-e connector
– 1* M.2 Connector(2242/2260)
– 1* SATA Connector
– 1* Speaker header(Amplifier function 3W)
– 1* Front panel header
– 1* SIM Card socket
BIOS
– AMI 64MB SPI ROM
Form Factor
– Thin mini ITX Form Factor(170mm X 170mm)
nicht verfügbar, Vorbestellung möglich
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, Celeron 396
296,67 €*
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, Celeron 3965U, VGA+dP)
- Intel Kaby Lake ULV Core i3/i5/i7 Processor
- Intel HD graphics and DirectX 12 support
- Dual channel DDR4 with two connectors for MAX. 32GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS
connectivity
- Features high speed Dual Gigabit Ethernet
- Features 1 SATA 6Gb/s
- Four SuperSpeed USB3.0 ports support
- Three RS232 + One RS232/422/485 ports
- One PCI Express Mini Card connector for expansion
- One M.2 2232 (E key) for expansion
- 8 V to 24 V wide-range voltage input
Item Spec Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“) Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory
- 2 x 260-pin DDR4 SO-DIMM slot
- Max capacity up to 32GB
Audio Controller Realtek ALC283 Expansion Capability
- M.2 2230 (E Key) with (PCIex1/USB2.0)
1
- Mini PCIe (full length, USB/PCIe/SATA)
1 External I/O
- HDMI-out
1
- Display port
1
- USB3.0
4
- RJ-45
2
- Audio combo jack (Mic-in and Line-out)
1 Internal I/O
- LVDS/eDP
1
- 7-pin SATA connector
1
- 4-pin SATA power
1
- USB2.0
2
- RS-232
3
- RS-232/422/485
1
- Audio header supporting system stereo speaker or buzzer
1
- MiAPI header
1
- Chassis front panel header
1 SIO Controller NCT6104D LAN Support
- 1 x I219LM, 1 x I211AT
BIOS AMI UEFI Hardware Management
- Nuvoton NCT6104D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
Environment
- Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
- Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
- Relative Humidity: 95% @60°C non-condensing
Certification
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i3-7100U, V
574,77 €*
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i3-7100U, VGA+dP)
- Intel Kaby Lake ULV Core i3/i5/i7 Processor
- Intel HD graphics and DirectX 12 support
- Dual channel DDR4 with two connectors for MAX. 32GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS
connectivity
- Features high speed Dual Gigabit Ethernet
- Features 1 SATA 6Gb/s
- Four SuperSpeed USB3.0 ports support
- Three RS232 + One RS232/422/485 ports
- One PCI Express Mini Card connector for expansion
- One M.2 2232 (E key) for expansion
- 8 V to 24 V wide-range voltage input
Item Spec Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“) Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory
- 2 x 260-pin DDR4 SO-DIMM slot
- Max capacity up to 32GB
Audio Controller Realtek ALC283 Expansion Capability
- M.2 2230 (E Key) with (PCIex1/USB2.0)
1
- Mini PCIe (full length, USB/PCIe/SATA)
1 External I/O
- HDMI-out
1
- Display port
1
- USB3.0
4
- RJ-45
2
- Audio combo jack (Mic-in and Line-out)
1 Internal I/O
- LVDS/eDP
1
- 7-pin SATA connector
1
- 4-pin SATA power
1
- USB2.0
2
- RS-232
3
- RS-232/422/485
1
- Audio header supporting system stereo speaker or buzzer
1
- MiAPI header
1
- Chassis front panel header
1 SIO Controller NCT6104D LAN Support
- 1 x I219LM, 1 x I211AT
BIOS AMI UEFI Hardware Management
- Nuvoton NCT6104D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
Environment
- Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
- Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
- Relative Humidity: 95% @60°C non-condensing
Certification
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i5-7300U, V
822,29 €*
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i5-7300U, VGA+dP)
- Intel Kaby Lake ULV Core i3/i5/i7 Processor
- Intel HD graphics and DirectX 12 support
- Dual channel DDR4 with two connectors for MAX. 32GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS
connectivity
- Features high speed Dual Gigabit Ethernet
- Features 1 SATA 6Gb/s
- Four SuperSpeed USB3.0 ports support
- Three RS232 + One RS232/422/485 ports
- One PCI Express Mini Card connector for expansion
- One M.2 2232 (E key) for expansion
- 8 V to 24 V wide-range voltage input
Item Spec Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“) Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory
- 2 x 260-pin DDR4 SO-DIMM slot
- Max capacity up to 32GB
Audio Controller Realtek ALC283 Expansion Capability
- M.2 2230 (E Key) with (PCIex1/USB2.0)
1
- Mini PCIe (full length, USB/PCIe/SATA)
1 External I/O
- HDMI-out
1
- Display port
1
- USB3.0
4
- RJ-45
2
- Audio combo jack (Mic-in and Line-out)
1 Internal I/O
- LVDS/eDP
1
- 7-pin SATA connector
1
- 4-pin SATA power
1
- USB2.0
2
- RS-232
3
- RS-232/422/485
1
- Audio header supporting system stereo speaker or buzzer
1
- MiAPI header
1
- Chassis front panel header
1 SIO Controller NCT6104D LAN Support
- 1 x I219LM, 1 x I211AT
BIOS AMI UEFI Hardware Management
- Nuvoton NCT6104D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
Environment
- Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
- Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
- Relative Humidity: 95% @60°C non-condensing
Certification
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i7-7600U, V
1.010,43 €*
Mitac PD11KS 3.5-SBC (Intel Kaby Lake, i7-7600U, VGA+dP)
- Intel Kaby Lake ULV Core i3/i5/i7 Processor
- Intel HD graphics and DirectX 12 support
- Dual channel DDR4 with two connectors for MAX. 32GB memory
- Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS
connectivity
- Features high speed Dual Gigabit Ethernet
- Features 1 SATA 6Gb/s
- Four SuperSpeed USB3.0 ports support
- Three RS232 + One RS232/422/485 ports
- One PCI Express Mini Card connector for expansion
- One M.2 2232 (E key) for expansion
- 8 V to 24 V wide-range voltage input
Item Spec Form Factor 3.5” single board computer, 102mm x 147mm (4“ x 5.8“) Processor Chipset Intel Kaby Lake-U i5-7300U with integrated graphics
(Compatible with 3955U/i3-6100U/i5-6300U/i7-6600U and 3965U/i3-7100U/i7-7600U)
Main Memory
- 2 x 260-pin DDR4 SO-DIMM slot
- Max capacity up to 32GB
Audio Controller Realtek ALC283 Expansion Capability
- M.2 2230 (E Key) with (PCIex1/USB2.0)
1
- Mini PCIe (full length, USB/PCIe/SATA)
1 External I/O
- HDMI-out
1
- Display port
1
- USB3.0
4
- RJ-45
2
- Audio combo jack (Mic-in and Line-out)
1 Internal I/O
- LVDS/eDP
1
- 7-pin SATA connector
1
- 4-pin SATA power
1
- USB2.0
2
- RS-232
3
- RS-232/422/485
1
- Audio header supporting system stereo speaker or buzzer
1
- MiAPI header
1
- Chassis front panel header
1 SIO Controller NCT6104D LAN Support
- 1 x I219LM, 1 x I211AT
BIOS AMI UEFI Hardware Management
- Nuvoton NCT6104D based subsystem, including:
- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
Environment
- Operating Temperature: 0°C ~ 60°C (32°F ~ 140°F)
- Storage Temperature: -20°C ~ 80°C (-4°F ~ 140°F)
- Relative Humidity: 95% @60°C non-condensing
Certification
- CE
- FCC
nicht verfügbar, Vorbestellung möglich
Mitac PD10AS 3.5-SBC (Intel Apollo Lake N3350, VGA
99,60 €*
Mitac PD10AS 3.5-SBC (Intel Apollo Lake N3350, VGA+HDMI, Dual LAN)
- Intel Apollo Lake-M N4200/N3350 and Apollo Lake-I E3930/E3940/E3950 quad/dual cores
processor
- Intel HD graphics and DirectX 12 support
- DDR3L with single connector for MAX. 8GB memory
- Triple independent display from HD-Out, VGA-out, and eDP / LVDS connectivity
- Features High speed dual Gugabit Ethernet connection
- Four High Speed USB3.0 ports support
- Four RS232 support, 1 supports RS-232/ 422/ 485
- One mPCIe connector for m-SATA or add-on card
- One M.2 slot for wireless expansion
- 8 V to 24 V wide-range voltage input via internal power connector
Achtung : Kühlkörper nicht im Standard-Lieferumfang enthalten ! Item Spec Sku-D Sku-W Form Factor 3.5” single board computer, 4”x 5.8” (102mm x 147mm) Processor Chipset Intel Apollo Lake Processor with integrated graphics N3350 (Compatible with N4200) E3930 (Compatible with
E3940/E3950) Main Memory Support for DDR3L 1866 MHz SO-DIMM Support for up to 8 GB of system memory 204-pin DDR3L SO-DIMM 1 Audio Controller NAU8822LYG audio codec Expansion Capability PCI Express Full-Length Mini Card slot (USB/PCIe/SATA) 1 M.2 (2230) with PCIex1 and USB2.0 signal for wireless 1 External I/O USB3.0 4 HD-out 1 VGA-out 1 RJ45 (1 st ) 1 RJ45 (2 nd ) 1 Internal I/O LVDS Connector (40Pin) 1 eDP Connector (40Pin) 1 7-pin SATA connector 1 Dual-port USB2.0 header 1 Chassis main panel header (2x5) 1 BIOS Clear Header/Jumper 1 Audio header (front panel mic/hp) 1 3-pin SATA power (For DOM) 1 Serial Port Headers 4(one supports RS-232/422/485) Jumper for AT/ATX mode 1 SIM Card holder 1 MiAPI: Programmable header (support GPIO x10, SMBUSx1, UARTx1, Watchdogx1) with API library supported for Windows OS S I/O Controller NCT6104D LAN Support Intel I210 (10/100/1000 Mb/s) Ethernet LAN controller 2 BIOS BIOS resident in a Serial Peripheral Interface (SPI) Flash device UEFI mode only (Does not support Legacy mode) Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS) Hardware Management Nuvoton NCT6104D based subsystem, including: Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Environment Operating Temperature: RH 20 90 (no condensation) 0°C to +70°C 0°C to +70°C/ -40°C to 85°C (Option) Storage Temperature: -40°C to +85°C / RH 20 90 (no condensation) Safety CE FCC Operating System Windows 10 64bit, Linux (support by request)
nicht verfügbar, Vorbestellung möglich
Mitac PD10AS 3.5-SBC (Intel Apollo Lake E3940, VGA
287,74 €*
Mitac PD10AS 3.5-SBC (Intel Apollo Lake E3940, VGA+HDMI, Dual LAN) [Erweiterter Temperaturbereich -40°C bis 85°C]
- Intel Apollo Lake-M N4200/N3350 and Apollo Lake-I E3930/E3940/E3950 quad/dual cores
processor
- Intel HD graphics and DirectX 12 support
- DDR3L with single connector for MAX. 8GB memory
- Triple independent display from HD-Out, VGA-out, and eDP / LVDS connectivity
- Features High speed dual Gugabit Ethernet connection
- Four High Speed USB3.0 ports support
- Four RS232 support, 1 supports RS-232/ 422/ 485
- One mPCIe connector for m-SATA or add-on card
- One M.2 slot for wireless expansion
- 8 V to 24 V wide-range voltage input via internal power connector
- Wide operating temperature from -40 to +85
Achtung : Kühlkörper nicht im Standard-Lieferumfang enthalten ! Item Spec Sku-D Sku-W Form Factor 3.5” single board computer, 4”x 5.8” (102mm x 147mm) Processor Chipset Intel Apollo Lake Processor with integrated graphics N3350 (Compatible with N4200) E3930 (Compatible with
E3940/E3950) Main Memory Support for DDR3L 1866 MHz SO-DIMM Support for up to 8 GB of system memory 204-pin DDR3L SO-DIMM 1 Audio Controller NAU8822LYG audio codec Expansion Capability PCI Express Full-Length Mini Card slot (USB/PCIe/SATA) 1 M.2 (2230) with PCIex1 and USB2.0 signal for wireless 1 External I/O USB3.0 4 HD-out 1 VGA-out 1 RJ45 (1 st ) 1 RJ45 (2 nd ) 1 Internal I/O LVDS Connector (40Pin) 1 eDP Connector (40Pin) 1 7-pin SATA connector 1 Dual-port USB2.0 header 1 Chassis main panel header (2x5) 1 BIOS Clear Header/Jumper 1 Audio header (front panel mic/hp) 1 3-pin SATA power (For DOM) 1 Serial Port Headers 4(one supports RS-232/422/485) Jumper for AT/ATX mode 1 SIM Card holder 1 MiAPI: Programmable header (support GPIO x10, SMBUSx1, UARTx1, Watchdogx1) with API library supported for Windows OS S I/O Controller NCT6104D LAN Support Intel I210 (10/100/1000 Mb/s) Ethernet LAN controller 2 BIOS BIOS resident in a Serial Peripheral Interface (SPI) Flash device UEFI mode only (Does not support Legacy mode) Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS) Hardware Management Nuvoton NCT6104D based subsystem, including: Voltage sense to detect out of range power supply voltages Thermal sense to detect out of range thermal values Environment Operating Temperature: RH 20 90 (no condensation) 0°C to +70°C 0°C to +70°C/ -40°C to 85°C (Option) Storage Temperature: -40°C to +85°C / RH 20 90 (no condensation) Safety CE FCC Operating System Windows 10 64bit, Linux (support by request)
nicht verfügbar, Vorbestellung möglich
Jetway JNF692G6 335B1 (Intel Apollo Lake, 6x LAN)
306,54 €*
Jetway JNF692G6 335B1 (Intel Apollo Lake, 6x LAN)
- Intel® Apollo Lake series SoC Processor. Default is N3350/N4200
- 1 * 204-pin DDR3L 1866MHz SODIMM Up to 8 GB
- 6* 10/100/1000 Base-TX Ethernet Ports (support up to 2 pairs ByPass GbE option)
- Support Intel AES NI and TPM (option) to secure customers data
- 1 * RS232 Console, 2 * USB3.0 & 2 * USB2.0, 1 * HDMI
- 1* Mini PCIe Slots (full size), 1* mSATA (full size), 1 * SIM card holder
- 12V DC-in power
The JETWAY JNF692 Series adopts the Intel® Apollo Lake series SoC processor. The system memory features one 204-pin DDR3L 1866MHz SODIMM Up to 8 GB. It equipped with six Gigabit Ethernet LAN ports (support up to 2 pairs ByPass GbE option) and suitable for networking environment. Intel® Apollo Lake series processor support AES NI which is a new encryption instructions to improves on the AES algorithm and accelerates the encryption of data. NF692 also support TPM feature to secure customers’ data (JETWAY Mini PCIe TPM card supported). In addition, it offers flexible expansion with network products and features one Mini PCIe slots, two USB 3.0 port, and one RS232 console port. Expansion opportunities are available with 1 Mini PCIe slot and 1 SIM card holder enabling the addition of Wi-Fi, 3G, 4G LTE for multiple connectivity. In addition, an internal Mini-SATA slot and SATA III connector for a 2.5 device provides storage selection. The console port deploys console re-direction that increases the network security via remote control. NF692 equip with TVS, voltage, current and ESD protection. All of these designs provide for a more user-friendly solution.
Model
JNF692G6-335/420
JNF692G6-335B1/420B1
Model
– JNF692G6-335
– JNF692G6-420 – JNF692G6-335B1
– JNF692G6-420B1
Part Number
– JNF692G6-335
– JNF692G6-420 – JNF692G6-335B1
– JNF692G6-420B1
Form Factor
Dimensions
– Thin Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel ® Apollo Lake SoC Processo Core Number
– (by CPU)
Max Speed
– (by CPU)
L2 Cache
– (by CPU)
Chipset
– SoC
BIOS
– AMI 128Mb Flash ROM
Expansion Slot
Mini-PCIe
– 1 (full size)
mSATA
– 1 (full size)
PCIe
– 1 * PCIe x1 (horizontal)
M.2
– 1 (M-key, 2242/2260)
SIM Card Holder
– 1
Memory
Technology
– DDR3L 1866MHz SDRAM
Max.
– 8GB (SO-DIMM)
Socket
– 1 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 0
LVDS
– 0
eDP
– 0
HDMI
– 1 (header connector, Max. Resolution: 3840 * 2160@30Hz)
MultiDisplay
– No
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– PCIe GbE LAN: Intel i211AT
Connector
– 6 * RJ45
– 6 * RJ45 (1 pair support ByPass GbE)
Audio
CODEC
– N/A
Channel
– N/A
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s) and 1 * mSATA (full size)
Rear I/O
VGA
– 0
HDMI
– 0
DisplayPort
– 0
Ethernet
– 6
– 6 (1 pair support ByPass GbE)
USB
– 2 * USB 3.0
Audio
– 0
Serial
– 1 * RS232 with RJ45 type connector
LED
– 2 (POWER, HDD)
DC-input
– 0
Internal Connector
USB
– 2 * USB 2.0
HDMI
– 1
LVDS / inverter
– 0
eDP
– 0
VGA
– 0
Serial
– 3 * RS232 (COM2 support RS232/422/485)
SATA
– 1
mPCIe
– 1 (full size)
mSATA
– 1 (full size)
M.2
– 0
GPIO
– 1 (4in/4 out)
Chassis intrusion
– 0
Audio Header
– 0
SMBUS/ I2C
– 1
AT mode
– 1
SIM card holder
– 1
PS/2
– 1
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments, 10sec…255min
Power Requirements
Input PWR
– +12V DC-in PWR header
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway JNF699-C3758 (Intel Denverton)
969,85 €*
Jetway JNF699-C3758 (Intel Denverton)
The JETWAY JNF699-C3758 is Mini-ITX form factor board adopts the Intel® Denverton C3758
(8 Core, 2.20GHz, 25W TDP) SoC Processor. The board supports four DDR4 2133/2400MHz,
288-pin U-DIMM/R-DIMM slots, up to 64/128GB memory. Featuring the integrated Intel®
Gigabit Ethernet controller, the JNF699-C3758 offers two 10/100/1000Base-TX
Ethernet devices and four 10GbE SFP+ for network transmission. Four SATAIII (6Gb/s)
interface and one M.2 (M-key, 2242/2260/2280) offer storage devices. One full size Mini
PCIe interface, three USB3.0 ports, two USB2.0 ports and two COM ports provide versatile
expansion. The PCIex8 (use x16 slot) can support Jetway riser card for different
expansion. The JNF699-C3758 offers 2 * Intel GbE and 4 * 10GbE SFP+ which can support more
networking appliance. Because of the above features, JNF699-C3758 is one of the best
selections for Networking applications.
- Intel® Denverton C3758 (8 Core, up to 2.20 GHz, 25W) Processor
- Support Registered ECC DDR4-2400MHz DIMM up to 128GB or Unbuffered ECC/Non-ECC
DDR4-2400MHz DIMM up to 64GB
- Support 2 * Intel i210AT GbE & 4 * 10GbE SPF+ ports
- Support 4 * SATA III & M.2 (M key, SATA interface, 2242/2260/2280) storage
- 3 * External USB3.0 & 2 * Internal USB2.0
- 1 * full size Mini-PCIe slot & 1 * PCIe x8 (use PCIe x16 slot)
- 1 * Internal VGA pin header
- Support on-board TPM2.0
- 24-pin ATX power
Model / Part Number
Model
– JNF699-C3758
Part Number
– JNF699-C3758
Form Factor
Dimensions
– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel ® Denverton C3758 Processor (TDP 25W) Core Number
– 8
Max Speed
– 2.20GHz
Cache
– 16MB
Chipset
– SoC
BIOS
– AMI Flash ROM
Expansion Slot
Mini-PCIe
– 1 (full size)
mSATA
– 0
PCIe
– 1 * PCIe x8 (using PCIex16 slot)
M.2
– 1 (M-key, SATA interface, 2242/2260/2280)
SIM Card Holder
– 0
Memory
Technology
– Registered ECC DDR4-2400MHz DIMM or Unbuffered ECC/Non-ECC DDR4-2400MHz DIMM
Max.
– 128GB (R-DIMM) / 64GB (U-DIMM)
Socket
– 4 * R-DIMM/U-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1 (INT pin header, supports max. resolution 1920 x 1200 @ 60 Hz)
LVDS
– 0
eDP
– 0
HDMI 1.4
– 0
MultiDisplay
– N/A
Ethernet
Ethernet
– 2 * 100/1000 Mbps & 2 * 10GbE
Controller
– 2 * Intel i210AT GbE
Connector
– 2 * RJ 45 & 4 * 10GbE SFP+ ports
Audio
CODEC
– N/A
Channel
– N/A
SATA
Max Data Transfer Rate
– 4 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 0
HDMI
– 0
Ethernet
– 2 * GbE & 4 * 10GbE SFP+ ports
USB
– 3 * USB 3.0
Audio
– 0
Serial / Parallel
– 0 / 0
Reset button
– 1
DC-input
– 0
Internal Connector
USB
– 2 * USB 2.0
Ethernet
– 0
LVDS / inverter
– 0
eDP
– 0
VGA
– 1
Serial
– 2
SATA
– 4 * SATAIII (6.0Gb/s)
mPCIe
– 1 (full size)
mSATA
– 0
M.2
– 1 (M-key, SATA interface, 2242/2260/2280)
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– N/A
AT mode
– 1
TPM Header
– On board TPM2.0
Others
– N/A
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments
Power Requirements
Input PWR
– ATX Power
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, LVD
Environment
Temperature
– Operating: 0°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway JNF695HV 3350 (Intel Apollo Lake) [10x COM,
286,79 €*
Jetway JNF695HV 3350 (Intel Apollo Lake) [10x COM, 1x HDMI]
The JETWAY JNF695 series are Thin Mini-ITX form factor board adopts the Intel® Apollo
Lake SoC Processor. The board supports DDR3L 1866MHz SODIMM memory, up to 8GB. Featuring
the integrated Realtek Gigabit Ethernet controller, the JNF695 offers
10/100/1000Base-TX Ethernet devices for network transmission. SATAIII (6Gb/s)
interface and one M.2 (M-key, 2242/2260) offer storage devices. One Mini PCIe
interface, four USB3.0 ports, six USB2.0 ports and two to ten COM ports provide versatile
expansion. The JNF695 offers eDP interface which can support max. 4K@60Hz resolution.
Because of the above features, JNF695 is one of the best selections for digital signage
and automation applications.
- Intel® Apollo Lake Processor
- 1 * DDR3L 1866MHz SODIMM Up to 8GB
- 1/2* 10/100/1000 Base-TX Ethernet Ports
- Support HDMI / VGA / LVDS / eDP display selection
- 2/6/10 * COM, 4 * USB3.0 & 6 * USB2.0
- 1* Mini PCIe slot & 1 * SIM card holder
- Support 1 * SATA III (6Gb/s) & 1 * M.2 (M-key, 2242/2260)
- 12V DC-in power
Model
JNF695HV-3350/4200
JNF695H2-3350/4200
JNF695P-3350/4200
JNF695L-3350/4200
Model
– JNF695HV-3350
– JNF695HV-4200 – JNF695H2-3350
– JNF695H2-4200
– JNF695P-3350
– JNF695P-4200 – JNF695L-3350
– JNF695L-4200 Part Number
– JNF695HV-3350
– JNF695HV-4200 – JNF695H2-3350
– JNF695H2-4200
– JNF695P-3350
– JNF695P-4200 – JNF695L-3350
– JNF695L-4200 Form Factor
Dimensions
– Thin Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel ® Apollo Lake SoC Processor Core Number
– (by CPU)
Max Speed
– (by CPU)
L2 Cache
– (by CPU)
Chipset
– SoC
BIOS
– AMI Flash ROM
Expansion Slot
Mini-PCIe
– 1 (full size)
M.2
– 1 (M-key, 2242/2260)
SIM Card Holder
– 1
– 1
– 1 – 0
Memory
Technology
– DDR3L 1866MHz SDRAM
Max.
– 8GB
Socket
– 1 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1
– 0
– 0
– 0
LVDS
– 1
eDP
– 1 (Max Resolution: 4096×2160@60Hz)
HDMI 1.4
– 1
– 2
– 2
– 1
Multi Display
– Triple Displays
– Triple Displays
– Triple Displays
– Dual Displays
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 2 * Realtek 8111G GbE
– 1 * Realtek 8111G GbE
Connector
– 2 * RJ 45
– 2 * RJ 45
– 1 * RJ 45
– 1 * RJ 45
Audio
CODEC
– HD Audio: Realtek ALC662VD
Channel
– Line-Out
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
– 0
– 0
– 0
HDMI
– 1
– 2
– 2
– 1
DisplayPort
– 0
Ethernet
– 2
– 2
– 1
– 1
USB
– 4 * USB 3.0
Audio
– 1 (Line-out)
DC-input
– 1
Internal Connector
USB
– 6 * USB 2.0
PS/2
– 1
LVDS / inverter
– 1
eDP
– 1
Serial
– 10 (COM1 support RS232/422/485)
– 10 (COM1 support RS232/422/485)
– 6
– 2
SATA
– 1 * SATAIII
mPCIe
– 1 (full size)
SIM card holder
– 1
– 1
– 1
– 0
M.2
– 1 (M-key, 2242/2260)
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM
– 1 (1.2/2.0 option)
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
– 12V DC-in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, LVD, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway NC6F I3855 (Intel Skylake U)
237,29 €*
Jetway NC6F I3855 (Intel Skylake U)
- Support Intel Celeron mobile processor 3855U (FCBGA1356)
- TWO 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM
- Supports 1* DVI-D, 1* HDMI, 1* DP (option)
- Supports 1* PCIe x4 and 1* Mini PCIe
- Supports 4* USB3.0, 3* USB2.0
- Mini ITX Form Factor
Form Factor
Dimensions
– Mini ITX (170 * 170mm)
Processor System
CPU
INTEL® Sky lake 3855U 1.6GHz Dual Cores CPU
Core Number
– Dual
Max Speed
1.6GHz
L2 Cache
–
Chipset
– SOC
BIOS
AMI 128Mb Flash ROM
Expansion Slot
PCI
– 0
Mini-PCI-e
1 (Full size)
PCI e
1 PCI Ex4
M.2
1(2242/2260/2280)
SIM card holder
– 1
Memory
Technology
DDR4 2133/1866MHz SDRAM
Max.
– 32GB
Socket
2 * SO DIMM
Graphics
Controller
– (by CPU)
VRAM
Shared Memory
VGA
– 0
LVDS
– 1
eDP
1(Option)
HDMI
-1
DVI D
-1
Display Port
– 1(Option)
MultiDisplay
Yes (Three Displays)
Ethernet
Ethernet
10/100/1000 Mbps
Controller
1 * Realtek RTL8111G
Connector
1 * RJ 45
Audio
CODEC
HD Audio : Realtek ALC662
Channel
4 Channel
SATA
Max Data Transfer Rate
2 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 0
DVI D
– 1
HDMI
– 1
Display Port
– 1(Option)
Ethernet
– 1
USB
4 (2 * USB 3.0 +2*USB2.0)
Audio
– 2 (MIC / Line out)
Serial
– 0
DC input
– 1
Internal Connector
USB
3 ( 1 * USB 2.0 + 2 * USB 3.0)
PS/2
– 1
LVDS / inverter
– 1
eDP
1(Option)
SATA
2 * SATAIII (6.0Gb/s)
Mini PCI e
– 1 (Full size)
M.2
1(2242/2260/2280)
SIM CARD
– 1
GPIO
4in / 4 out
Speaker
1(3W Amp)
Audio Header
– 1
SMBUS/ I2C
– 1
Power Out
– 1(DC 12V)
Watchdog Timer
Output
From Super I/O to drag RESETCON#
Interval
256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
+19V DC in (2 pin PWR Con)
Power On
AT/ATX Supported
AT : Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready Certifications
Certifications
CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: 10°C ~ 60°C
– Storage: 20°C ~ 85°C
nicht verfügbar, Vorbestellung möglich
Jetway NC6J-I3855-2L (Intel Skylake U)
257,04 €*
Jetway NC6J-I3855-2L (Intel Skylake U)
- Intel® Skylake-3855U SoC
- Support DDR4/2133
- 2 * PCI Express Gigabit LAN
- Support Power Onboard(12V)
- Onboard 1 * Mini PCI-E connector, 1 * M.2 (2242/2260) connector for SSD
- Mini-ITX Form Factor (170mm * 170mm)
Form Factor
Dimensions
– Mini-ITX (170 * 170mm)
Processor System
CPU
– Intel ® Skylake 3855U 1.6GHz Dual Cores CPU Core Number
– Dual
Max Speed
– 1.6GHz
L2 Cache
–
Chipset
– SoC
BIOS
– AMI 128Mb Flash ROM
Expansion Slot
PCI
– 0
Mini-PCIe
– 1 (Full size)
mSATA
– 0
PCIe
– 0
M.2
– 1 (2242/2260)
SIM Card Holder
– 1
Memory
Technology
– DDR4 2133/1866MHz SDRAM
Max.
– 16GB
Socket
– 1 * SO-DIMM
Graphics
Controller
– (by CPU)
VRAM
– Shared Memory
VGA
– 1
LVDS
– 1 (Option)
eDP
– 1 (Option)
HDMI
– 1 (Option)
Display Port
– 1 (Option)
MultiDisplay
– Yes (Three Displays)
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 2 * Realtek RTL8111G
Connector
– 2 * RJ 45
Audio
CODEC
– HD Audio : Realtek ALC662VD
Channel
– 4 Channel
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
DVI-D
– 0
HDMI
– 1 (Option)
Display Port
– 1 (Option)
Ethernet
– 1
USB
– 2 (2 * USB 3.0)
Audio
– 2 (MIC / Line-out)
Serial / Parallel
– 0
PS2
– 0
DC-input
– 1
Internal Connector
USB
– 5 ( 3 * USB 2.0 + 2 * USB 3.0)
PS/2
– 1
LVDS / inverter
– 1 (Option)
eDP
– 1 (Option)
VGA
– 1
Serial
– 10 (COM1/2 Support RS232/422/485, 2 *RS-232 with 5V/12V selectable header)
SATA
– 1 * SATAIII (6.0Gb/s)
mPCIe
– 1 (Full size)
Parallel
– 1
M.2
– 1 (2242/2260)
SIM CARD
– 1
GPIO
– 4 in / 4 out
Speaker
– 1 (3W Amp)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM Header
– 0
Others
– 0
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
– +12V DC-in (4-pin PWR Con)
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: -10°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway NC7K-I1900 (Intel Bay Trail)
217,41 €*
Jetway NC7K-I1900 (Intel Bay Trail)
- Intel® Bay Trail-D J1900 SOC (CO-LAY N2930)
- Onboard INTEL® J1900 2.0GHz Quad Cores CPU
- Support 1* DDR3/1333 SO-DIMM Max 8GB
- 1* GbE, 1* USB3.0, 8* USB2.0, 4* COM (COM1/2 Support 5V/12V)
- Support 1 * SIM Card(Option)
- Support CRT+ EDP+LVDS Display(Co-lay CRT +2*EDP)
- Thin Mini-ITX Form Factor(170 x170mm)
Form Factor
Dimensions
– Thin Mini-ITX (170 x 170mm)
Processor System
CPU
– Intel ® Bay Trail-D J1900 Core Number
– 4
Max Speed
– Turbo Boost 2.42GHz
L2 Cache
– 2MB
Chipset
– SoC
BIOS
– AMI 64M Flash ROM
Expansion Slot
PCI
– 0
Mini-PCIe
– 1 (Full size)
mSATA
– 1
PCIe
– 0
M.2
– 0
SIM Card Holder
– 1
Memory
Technology
– DDR3L 1333MHz DRAM
Max.
– 8GB
Socket
– 1 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1 (Max Resolution: 2560 x 1600@60Hz)
LVDS
– 1 (CO-Lay eDP)
eDP 1.3
– 1 (Max Resolution: 2560×1600@60Hz)
HDMI
– 0
Display Port
– 0
MultiDisplay
– Yes (Dual Displays)
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 1 * RTL8111G Gigabit LAN
Connector
– 1 * RJ 45
Audio
CODEC
– HD Audio : Realtek ALC662
Channel
– FP_AUDIO, 3W Amplifier Speaker out
SATA
Max Data Transfer Rate
– 1 * SATAII (3.0Gb/s)
Rear I/O
VGA
– 1
DVI-D
– 0
HDMI
– 0
Display Port
– 0
Ethernet
– 1
USB
– 1* USB 3.0 + 3* USB2.0
Audio
– 1 (Line-out)
Serial / Parallel
– 1 (RS232,Support 5/12V)
PS2
– 0
DC-input
– 1
Internal Connector
USB
– 5 * USB 2.0
PS/2
– 1
LVDS / inverter
– 1 (Co-lay EDP2)
eDP
– 2 (EDP2 Co-lay LVDS)
VGA
– 1
Serial
– 3 (COM2 Support 5V/12V)
SATA
– 1 * SATAII (3.0Gb/s)(Co-lay 7+15pin SATA+SATA Power Connector)
mPCIe
– 1 (Full size)
Parallel
– 1
m-SATA
– 1
GPIO
– 8bit
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 0
AT mode
– 0
TPM Header
– 0
Others
– 0
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (0 ~ 255sec)
Power Requirements
Input PWR
– +12V DC-in (2-pin PWR Con)
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: -10°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway NC6I-IH81 (Intel H81)
266,92 €*
Jetway NC6I-IH81 (Intel H81)
- Support DDR3 /DDR3L 1600/1333 up to 16GB
- 4 * USB3.0 (PCI-E to USB3.0), 8 * USB2.0, 2 * GbE
- 12 * RS232(COM1/COM2 support RS232/422/485, COM3/COM4 support RS232/485)
- 2 * CRT Ports (CRT2 support Dummy load function)
- SIM Card Socket, TPM Header
- 4 Phase CPU Power Support 84W CPU
Form Factor
Dimensions
– Mini-ITX (170 * 170mm)
Processor System
CPU
– Intel LGA 1150 Socket Core i7/i5/i3/Pentium Processor
Core Number
– (by CPU)
Max Speed
– – (by CPU)
L2 Cache
– (by CPU)
Chipset
– Intel H81 Express chipset
BIOS
– AMI 32Mb Flash ROM
Expansion Slot
PCI
– 0
mSATA
– 1 (full size ,Co-lay Mini PCI-e)
PCIe
– 1 (by 16)
Mini-Pcle
– 2 (full size)
TPM Header
– 1
SIM Card Socket
– 1
Memory
Technology
– DDR3L 1600/1333MHz
Max.
– 16GB
Socket
– 2* SO-DIMM
Graphics
Controller
– Intel ® HD Graphics
VRAM
– Shared system memory
VGA
– 2
DVI-D
– 0
HDMI
– 1 (1.4b)
Display Port
– 0
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– GbE LAN:2* Intel i211AT
Connector
– 2 * RJ 45
SATA
Max Data Transfer Rate
– 2 * SAT3.0 (6.0Gb/s)
Rear I/O
DVI -D
– 0
HDMI
– 1
DisplayPort
– 0
Ethernet
– 2
Audio
– 1 (3JACK)
USB
– 4 * USB 3.0 + 2* USB2.0
PS2
– 0
Internal Connector
DisplayPort
– 1
USB
– 6 *USB2.0
PS2
– 1
HDMI
– 0
Display Port
– 0
Serial
– 10 ( COM3/COM4 Support RS232/485)
SATA
– 2 * SATA3.0
MiniPCI-e
– 2 (full size)
Parallel
– 1
M-SATA
– 1 (full size, Co-lay Mini PCI-e)
GPIO8-bit
– 1 (4 * IN +4 * OUT)
TPMheader
– 1
Chassisintrusion
– 1
SpeakerHeader
– 1
LANLED Header
– 1
AT Mode
– 1
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Power Requirements
InputPWR
– 4 Pin / 24 Pin ATX PWR Connector
PowerOn
AAT/ATX Supported
AT : Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: -10°C – 60°C
– Storage: -20°C – 85°C
nicht verfügbar, Vorbestellung möglich
Jetway NC6J-I3855-6C (Intel Skylake-U)
227,41 €*
Jetway NC6J-I3855-6C (Intel Skylake-U)
- Intel® Skylake-3855U SoC
- Support DDR4/2133
- 1 * PCI Express Gigabit LAN
- Support Power Onboard (12V)
- Onboard 1 * Mini PCI-E connector, 1 * M.2 (2242/2260) connector for SSD
- Mini-ITX Form Factor (170mm * 170mm)
Form Factor
Dimensions
– Mini-ITX (170 * 170mm)
Processor System
CPU
– Intel ® Skylake 3855U 1.6GHz Dual Cores CPU Core Number
– Dual
Max Speed
– 1.6GHz
L2 Cache
–
Chipset
– SoC
BIOS
– AMI 128Mb Flash ROM
Expansion Slot
PCI
– 0
Mini-PCIe
– 1 (Full size)
mSATA
– 0
PCIe
– 0
M.2
– 1 (2242/2260)
SIM Card Holder
– 1
Memory
Technology
– DDR4 2133/1866MHz SDRAM
Max.
– 16GB
Socket
– 1 * SO-DIMM
Graphics
Controller
– (by CPU)
VRAM
– Shared Memory
VGA
– 1
LVDS
– 1 (Option)
eDP
– 1 (Option)
HDMI
– 1 (Option)
Display Port
– 1 (Option)
MultiDisplay
– Yes (Three Displays)
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 1 * Realtek RTL8111G
Connector
– 1 * RJ 45
Audio
CODEC
– HD Audio : Realtek ALC662VD
Channel
– 4 Channel
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
DVI-D
– 0
HDMI
– 1 (Option)
Display Port
– 1 (Option)
Ethernet
– 1
USB
– 4 (2 * USB 3.0 + 2 * USB2.0)
Audio
– 2 (MIC / Line-out)
Serial / Parallel
– 0
PS2
– 0
DC-input
– 1
Internal Connector
USB
– 3 ( 1 * USB 2.0 + 2 * USB 3.0)
PS/2
– 1
LVDS / inverter
– 1 (Option)
eDP
– 1 (Option)
VGA
– 1
Serial
– 6 (2 * RS-232 with 5V/12V selectable header,COM1 Support RS232/422/485)
SATA
– 1 * SATAIII (6.0Gb/s)
mPCIe
– 1 (Full size)
Parallel
– 1
M.2
– 1 (2242/2260)
SIM CARD
– 1
GPIO
– 4 in / 4 out
Speaker
– 1 (3W Amp)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM Header
– 0
Others
– 0
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
– +12V DC-in (4-pin PWR Con)
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: 0°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway JNC8D I3855 2L (Intel Skylake-U)
227,41 €*
Jetway JNC8D I3855 2L (Intel Skylake-U)
- Intel® Skylake-U 3855U SOC (CO-LAY i3/i5/i7 Series)
- Onboard INTEL® 3855U 1.6GHz Dual Cores CPU
- Support 1* DDR4/2133 SO-DIMM Max 16GB
- Support 1* PCIe x4 Gold finger
- 4* USB3.0, 4* RS232 (COM1/2 Support 5V/12V), 1* SIM Card holder
- Support HDMI+eDP+LVDS or CRT+eDP+LVDS Display
- 12V DC on board
- Thin Mini ITX Form Factor (170mm x170mm)
Model
JNC8D-I3855
JNC8D-I3855-2L
Model
– JNC8D-I3855
– JNC8D-I3855-2L
Part Number
– JNC8D-I3855
– JNC8D-I3855-2L
Form Factor
Dimensions
– ITX(170 x 170mm)
Processor System
CPU
– Intel® Skylake-U 3855U
Core Number
– 2
Max Speed
– 1.6GHz
L3 Cache
– 2MB
Chipset
– SoC BIOS
– AMI 128M Flash ROM
Expansion Slot
Mini PCIe
– 1 (full size)
mSATA
– 1 (full size)
PCIe Gold Finger
– 1 (PCI-E x4)
SIM Card Holder
– 1
Memory
Technology
– DDR4 2133MHz DRAM
Max.
– 16GB
Socket
– 1 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics 510
VRAM
– Shared Memory
VGA
– 1 (Max Resolution: 1920×1200@60Hz)
LVDS
– 1 (Max Resolution: 2560 x 1600@60Hz)
eDP 1.3
– 1 ( Max Resolution: 4096×2304@60Hz)
HDMI 1.4
– 1 (Max Resolution : 4096×2304@24Hz)
DisplayPort
– 0
Multi Display
– 2 Displays
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 1* REALTEK® RTL8111G GbE
– 2* REALTEK® RTL8111G GbE
Connector
– 1 * RJ 45
– 2 * RJ 45
Audio
CODEC
– HD Audio : REALTEK® ALC662
Channel
– FP_AUDIO, 3W Amplifier Speaker out
SATA
Max Data Transfer Rate
– 1 * SATAIII (6.0Gb/s, Support Slim hard drive design)
Rear I/O
VGA
– 0
HDMI
– 1 (CO-LAY VGA Header)
DisplayPort
– 0
Ethernet
– 1
– 2
USB
– 4* USB 3.0
– 2* USB2.0
– 4 * USB 3.0
Audio
– 2 (Line-out + MIC)
DC-input
– 1 (12V DC-IN
Internal Connector
USB
– 2 * USB 2.0
– 4 * USB 2.0
PS/2
– 1
LVDS / inverter
– 1
eDP
– 1
VGA
– 1 (CO-LAY HDMI port)
Serial
– 4 (COM1/2 Support 5V/12V TTL)
SATA
– 1 * SATAIII (6.0Gb/s)
mPCIe
– 1 (full size)
mSATA
– 1 (full size)
GPIO
– 16bit (5V)
Chassis intrusion
– 0
Audio Header
– 1
SMBUS/ I2C
– 1
Others
– 1* PCI-Ex4 Gold finger
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (0 ~ 255sec)
Power Requirements
Input PWR
– 12V DC in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX : Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: -10°C ~ 60°C
– Storage: -20°C ~ 70°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Jetway JNF797-Q370 (Intel Coffee Lake)
405,55 €*
Jetway JNF797-Q370 (Intel Coffee Lake)
The JETWAY JNF797-Q370 is Mini-ITX form factor board adopts the Intel® 8th generation
Core i7/i5/i3, Pentium and Celeron Processor. The board supports two SO-DIMM DDR4
2400/2666 MHz memory, up to 32GB. Featuring the integrated Intel® Gigabit Ethernet
controller, the JNF797 offers two 10/100/1000Base-TX Ethernet devices for network
transmission. Two SATAIII (6Gb/s) interface support RAID 0, 1 offer storage devices.
One PCIe x4 interface, one M.2 (E-key 2230), four USB3.1 Gen.2 ports, two COM ports
provide versatile expansion. The JNF797 offers one HDMI1.4 port (option with DP1.4),
two DP1.4 port and one eDP which can support 3 independent displays. JNF797 have power on
board feature that could be more convenient of use condition. Because of the above
features, JNF797 is suitable for Digital Signage, Industrial PCs, Factory Automation,
Public Sector and Digital Security applications.
- Intel® Coffee Lake Processor (TDP 65W)
- 2 * DDR4 2400/2666MHz SO-DIMM up to 32 GB
- 1 * HDMI (option with DP), 2 * DP, 1 * eDP
- 2 * COM RS232 (RS422/485 option), 6 * USB3.1 Gen.2, 4 * USB2.0, 2 * GbE
- 1 * PCIe x4 slot, 1 * M.2 (M-Key 2242/2260/2280), 1 * M.2 (E-key 2230)
- Support TPM1.2/2.0 (on board option)
- Power Onboard Solution
- Mini ITX form factor (170mm x 170mm)
Model
Model
– JNF797-Q370
Part Number
– JNF797-Q370
Form Factor
Dimensions
– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU
– Intel ® LGA1151 Coffee Lake Processor (Max. TDP 65W) Core Number
– (By CPU)
Max Speed
– (By CPU)
L2 Cache
– (By CPU)
Chipset
– Intel Q370 Chipset
BIOS
– AMI Flash ROM
Expansion Slot
PCIe
– 1 (PCIex4 slot)
M.2
– 1 (M-Key 2242/2260/2280)
– 1 (E-key 2230)
Memory
Technology
– DDR4 2400/2666 MHz Dual CH SDRAM non-ECC
Max.
– 32GB
Socket
– 2 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
eDP 1.3
– 1 (Max Resolution: 4096×2304@60Hz)
HDMI 1.4
– 1 (default, option with DP)
(Max Resolution: 4096×2160@30Hz) DisplayPort
– 3 (One port option with HDMI)
(Max Resolution: 4096×2304@60Hz) Multi Display
– Triple Display
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– 2 * Intel GbE (1 * i219-LM, 1 * i210-AT)
Connector
– 2 * RJ 45
Audio
CODEC
– HD Audio: Realtek ALC662VDs
Channel
– 6 Channel
SATA
Max Data Transfer Rate
– 2 * SATAIII support RAID 0, 1
Rear I/O
HDMI
– 1 (default, option with DP)
DisplayPort
– 2
Ethernet
– 2
USB
– 4 * USB 3.1 (Gen. 2)
Audio
– 3 (Line-In, Line-Out, MIC)
Serial
– 2 COM RS232 (RS422/485 option)
DC-input
– 1
Internal Connector
USB
– 2 * USB3.1 (Gen. 2), 4 * USB 2.0
PS/2
– 1
eDP
– 1
SATA
– 2 * SATAIII
M.2
– 1 (M-Key 2242/2260/2280)
– 1 (E-key 2230)
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
SMBUS/ I2C
– 1
AT mode
– 1
TPM
– 1 (on board option)
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
– 9 ~ 36V DC in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, LVD, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
Mitac PH13FEI (SKU D) Mini-ITX (Intel Q370, LGA115
208,49 €*
Mitac PH13FEI (SKU D) Mini-ITX (Intel Q370, LGA1151 Coffee Lake)
- Support Intel Coffee lake processors
- Dual channel DDR4 260-pin SO-DIMM
- Intel ® vPro business-grade technology support (with Q370 chipset)
- Dual high speed Gigabit Ethernet connection
- Two M.2 (NGFF) connector for expansion
- Features 4 SATA3 (6Gbps)
- Triple display connectivity by dual DP & HDMI
- Embedded LVDS / eDP connectivity
- Onboard 2/4 serial ports
Item Spec Form Factor Mini-iTX, 6.7” x 6.7” (170mm x 170mm) Processor
CPU Type : Intel Coffee lake Processor
CPU Core : Dual Core / Quad Core / Hexa core
Socket : Socket LGA1151
TDP : Support up to 65W CPU types Chipset Chipset Series : Intel® Q370 Chipset Memory
Memory Type : DDR4 @ 1.2V, 2666 MHz (Unbuffered Non-ECC)
Memory Channel: Dual Channel
Memory Capacity : Support total up to 32GB
ECC Support : No Memory Socket: 260-pin So-DIMM socket 2 Audio Codec: HD audio codec, Realtek ALC662 Expansion Capability PCIe 3.0 x 16 slot 1 M.2 (NGFF) M key 2242/2280 (PCIe / SATA) for storage 1 M.2 (NGFF) E key 2230 (PCIe / USB) for wireless 1 External I/O HDMI out 1 DP out 4 USB 3.1 gen 2 (10 Gb/s) 4 RJ-45 2 Line-Out 1 Mic-In 1 Line-In 1 Internal I/O 40PIN Header LVDS Connector 1 USB3.0 ports 2 Front audio Header (Mic / HP) 1 DMIC Header 1 Internal Speaker (support 2W) 1 USB 2.0 ports 2 Serial port header (one configurable for RS232/422/485) 4 MiAPI Programmable header (support GPIO x 10, SMBUS x 1, UART x 1, Watchdog x1 ) with API library supported for Windows OS 1 SATA 3.0 6 Gb/s (PCH Q series Support RAID 0, 1) 3 Front Panel header 1 LVDS inverter power header 1 Clear CMOS header 1 Panel power Header (default 5V, option to 12V, 3.3V) 1 CPU fan header 1 SYS fan header 1 Security Nuvoton NCT6116D
Intel® vPro™ Technology support
TPM security by Nuvoton NPCT750AAAYX (optional) LAN Support Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
Intel® I211 Gigabit (10/100/1000 Mb/s) LAN BIOS Support for Advanced Configuration and Power
Interface (ACPI) setting Instantly Available PC Technology Suspend to RAM support
Wake on PCI Express, LAN, front panel, serial, and USB ports Hardware Monitor Subsystem Hardware monitoring through the Nuvoton6104D legacy I/O controller, including:
Remote thermal sensor
Speed control for 4-pin system fan header and 4-pin CPU fan header Power Requirement ATX PWR Con (24+4 pin) Environment Operating Temperature: 0 °C to +60 °C
Storage Temperature: -20°C to +70°C OS Support
Windows 10 64bit, Linux (support by request) Safety CE
FCC
nicht verfügbar, Vorbestellung möglich
Jetway JNC8H-IH310 (Intel Coffee Lake-S)
257,04 €*
Jetway JNC8H-IH310 (Intel Coffee Lake-S)
- Intel® LGA1151 Socket Core I3,I5,I7 Pentium Processor
- Intel® Coffee Lake-S H310 Chip
- Support Dual Channel DDR4 2133MHz, up to 32GB
- 1* Intel® I219-V + 1* Intel® i211AT GbE
- 1* SATAIII (6Gb/s), 1* M.2 (M key 2242), 1* M.2 E key Support CNVi, 1* PCIe x4 Slot
- HDMI/VGA /EDP (CO-lay LVDS) Output
- 4* RS232 (COM1/2 Support 5V/12V TTL), 4* External USB3.0, 5* Internal USB2.0
- DC 12~24V Input
- Thin MINI ITX Form Factor (170 *170 mm)
Model
Model
– JNC8H-IH310
Part Number
– JNC8H-IH310
Form Factor
Dimensions
– Thin Mini ITX ( 170 * 170mm)
Processor System
CPU
– Intel ® LGA1151 Series Processor Core Number
– (By CPU)
Max Speed
– (By CPU)
L2 Cache
– (By CPU)
Chipset
– H310
BIOS
– AMI 128M Flash ROM
Expansion Slot
M.2
– 1* E key 2230,Support CNVi
– 1* M Key 2242
SATA
– 1
PCIe
– 1 (PCIe x4 slot)
PCIe
– 1 (PCIex4 slot)
Memory
Technology
– Dual CH DDR4 2133MHz DRAM
Max.
– 32GB
Socket
– 2 * SO-DIMM
Graphics
Controller
– Intel® HD Graphics
VRAM
– Shared Memory
VGA
– 1
LVDS
– 1 (Co-lay EDP)
eDP 1.3
– 1 (Co-lay LVDS) HDMI 1.4
– 1 (Max Resolution : 4096×2304@24Hz) Multi Display
– Triple Display
Ethernet
Ethernet
– 10/100/1000 Mbps
Controller
– Intel® I219-V + i211AT Gigabit LAN
Connector
– 2* RJ 45
Audio
CODEC
– HD Audio: Realtek ALC662VD
Channel
– Line-Out, MIC
SATA
Max Data Transfer Rate
– 1* SATAIII (6.0Gb/s)
Rear I/O
VGA
– 1
HDMI
– 1
Ethernet
– 2
USB
– 4* USB 3.0
Audio
– 1 (Line-out, MIC)
DC-input
– 1
Internal Connector
USB
– 5 (USB 2.0)
PS/2
– 1
LVDS / inverter
– 1 (Co-lay eDP )
eDP
– 1
Serial
– 4 (COM1/2 Support 5V/12V TTL)
SATA
– 1* SATAIII (6.0Gb/s)
M.2
– 2 (M key + E key)
GPIO
– 1 (8 bit)
Chassis intrusion
– 1
Audio Header
– 1
SMBUS/ I2C
– 1
AT mode
– 1
Watchdog Timer
Output
– From Super I/O to drag RESETCON#
Interval
– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR
– 12 ~ 24V DC-in
Power On
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications
– CE, FCC, RoHS, REACH
Environment
Temperature
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty
– 2 Years Limited Warranty
nicht verfügbar, Vorbestellung möglich
